OEM Mini Embedded 1D 2D QR Barcode Scanner Module High Accuracy For PLC Industry

Name: OEM Mini Embedded 1D 2D QR Barcode Scanner Module High Accuracy For PLC Industry
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1570S
Price: 10 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1570S
MOQ:	2
Price:	10
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

RS485 Barcode Reader Module

Dimensions (W X D X H):

48*42*15.5mm

Typical DOF:

QR Code(20mil)40-220mm

Interface:

TTL232 ,USB(HID, COM),RS485(optional), RS232(optional)

Indication:

Buzzer & LED

View Angle:

66°(H) X60°(V)

Application:

Add Card Present, Strobe Clock Signal Of Card Reader

Advantage:

Inexpensive, Support Customization

Highlight:

Mini r Code Scanner Module

Embedded QR Barcode Scanner Module

PLC Industry Barcode Scanner Module

Product Description

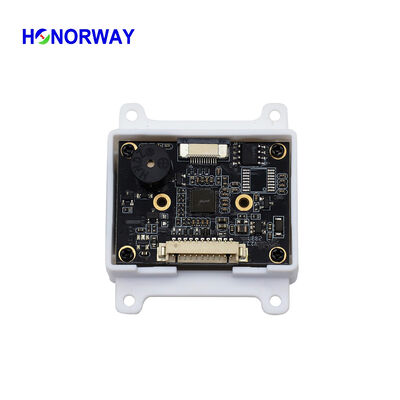

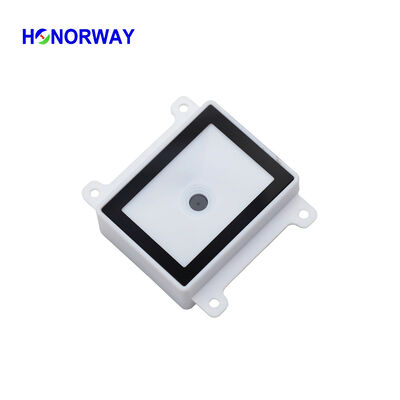

HW-1570S Mini OEM Embedded 1D 2D QR Barcode Scanner Module

Mini Barcode Reader Module for QR Code Payment Integration

Designed for next-generation payment terminals and self-service machines, the HW-1570S delivers reliable barcode scanning in a miniaturized package. Measuring L48 x W42 x H15.5mm, this tiny scan engine is built for systems with tight mounting constraints. It connects via an 11-pin 1.25mm interface, offering both USB and serial communication options along with five additional GPIO pins for expanded functionality—all without requiring hardware redesign.

Key Advantages

Reads both paper and screen-displayed 1D and 2D barcodes with high accuracy

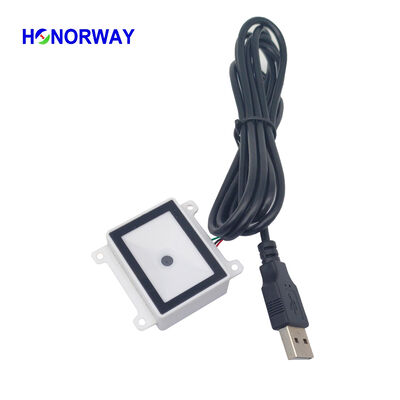

Supports USB, USB COM, TTL, RS232, and RS485 for flexible system integration
Operates in auto-trigger, continuous, or host-controlled modes
Extremely small footprint maximizes design flexibility
Fully customizable—hardware, firmware, cables, and connectors available

Technical Specifications

Image Sensor	CMOS
Resolution	0.3MP 640*480 pixels
Decoding Capacity	Supports paper and screen barcodes 2D: QR, PDF417, DATAMATRIX, etc. 1D: UPCA, UPCE0, Code 11, Codabar, Matrix2of5, Industrial25, RSS14, RSS Limited, RSS Expanded, MSI Plessey, UPCE1, EAN13, EAN8, CODE39, CODE 93, CODE128, ISBN13 INTERLEAVED 2 of 5, and all normal 1D barcodes
Precision	5mil
Light Source	LED (630nm±10nm)
View Angle	66°(H) x 60°(V)
Scan Angle	Rotation 360°, tilt ±55°, skew ±55°
Min Contrast	30%
Trigger Mode	Auto-sensing, Continuous, Host (programmable) Mode
Typical DOF	Code 128 (6mil) 10-100mm Code 128 (20mil) 50-190mm QR code (5mil) 6-60mm QR code (20mil) 40-220mm Performance may be impacted by barcode quality and environmental conditions
Interface	TTL232, USB (HID, COM), RS485 (optional), RS232 (optional)
Input Voltage	DC 5V±10%
Working Current	60mA (working) max 120mA 1.5mA (TTL standby)
Dimensions	484215.5mm
Weight	20g (without cable)
Indication	Buzzer & LED

Real-World Use Cases

Smart Coffee Vending Machines: Deployed in high-traffic locations like office lobbies and retail spaces, using the scanner for seamless QR code-based mobile payments.
Smart Metering Solutions: Integrated into industrial electricity meters via RS485, allowing users to complete payments by scanning QR codes on their smartphones.
POS System Retrofits: Upgrades traditional card payment terminals with added "card present" and "Strobe" clock signal control, enabling QR code payment capabilities in line with global market trends.
