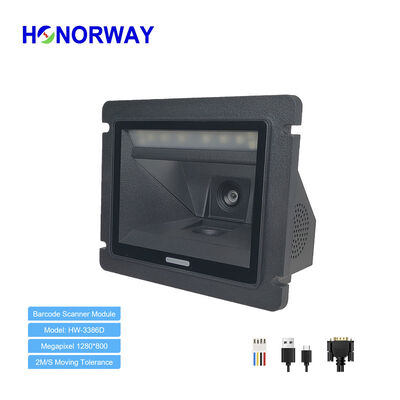

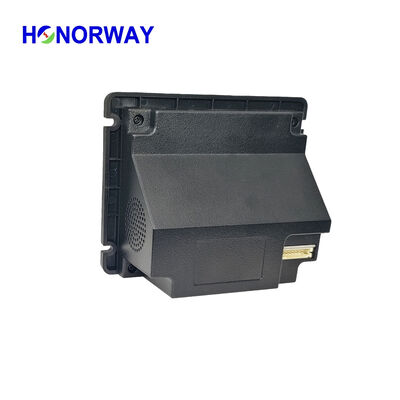

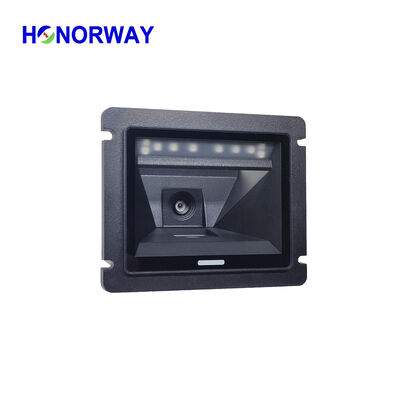

1D 2D Auto Detective Barcode Scanner Module Industrial Grade For Conveyor Assembly Lines

Name: 1D 2D Auto Detective Barcode Scanner Module Industrial Grade For Conveyor Assembly Lines
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-3386D
Price: 28.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-3386D
MOQ:	1
Price:	$26-$30
Payment Terms:	T/T
Supply Ability:	10Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS ISO9001

Document:

HW-3386D data sheet.pdf

Product Name:

Barcode Scanner Module For Reading Moving Barcode QR

Symbologies:

1D/2D/PDF417/QR/Data Matrix

Resolution:

1280*800p

Motion Tolerance:

2M/S

Interface:

USB/USB COM/RS232 Etc.

Dimension:

115*94*51.8mm

Feature:

High Moving Tolerance

Application:

Logistic Conveyor, Factory Assembly Line,kiosk, Turnstile

Packaging Details:

Paper box

Highlight:

Auto Detective Barcode Scanner Module

Industrial Grade Barcode Scanner Module

Product Description

High Motion Tolerance 2M/S Fixed Mount 1D 2D Auto Detective Barcode Scanner Module

Designed for conveyor assembly lines, this industrial-grade barcode scanner module delivers exceptional performance for dynamic scanning applications with superior motion tolerance capabilities.

Product Overview

The HW-3386D is a high-performance embedded 1D/2D barcode scanning module engineered for demanding industrial environments. It features exceptional reading performance for moving barcodes, capable of stable decoding at speeds up to 2 meters per second. With 360° omni-directional scanning capability, barcodes can enter the reading window from any angle without dead zones. Unlike competing products limited to horizontal or vertical movement tolerance, the HW-3386D effectively resolves dynamic barcode scanning challenges in real-world applications.

Key Features

Superior Motion Tolerance: 360° dead-angle-free scanning of moving 1D and 2D barcodes
Megapixel-Level Resolution: 1280×800 resolution for decoding high-density barcodes
User-Friendly Structural Design: Rugged housing with acrylic protection and raised scanning window for easy integration
Precise Short-Range Scanning: Specular reflection optical design optimizes close-distance reading
Large Reading Window: Accommodates various barcode sizes and supports mobile phone screen scanning
High Cost-Effectiveness: Domestic manufacturing ensures reliable quality and competitive pricing

Technical Specifications

Reading Performance

Image Sensor	CMOS global shutter
Resolution	1MP, 1280×800 pixels
Decoding Capacity	Supports paper and screen barcodes including QR, MicroQR, PDF417, DataMatrix, Code 128, EAN-13, Code 39, UPC-A, and more
Precision	4mil (1D); 5mil (2D)
Light Source	Red LED for illumination
View Angle	64°(H) × 50°(V)
Scan Angle	Rotation 360°, tilt ±55°, skew ±55°
Min Contrast	20%
Motion Tolerance	2M/S
Trigger Mode	Continuous, Motion sensing, Host Mode

Mechanical and Electrical

Interface	USB, USB COM, TTL, RS232
Working Voltage	DC 5V ±10%
Current	Max 450mA (working), 190mA (typical)
Dimensions	114.5(W) × 93.5(D) × 49.5(H) mm
Weight	160g (without cable)
Indication	Blue LED and speaker

Environmental Requirements

Working Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (Non-condensing)
Light Brightness	0-100,000 LUX

Accessories

Includes USB cable (1.5M); other cable types available by customization

Application Scenarios

With optimized structure, built-in reflector for extended optical path, high-speed image sensor, and fast-decoding main control chip, the HW-3386D is ideal for:

Logistics Conveyor Belt Sorting: Rapid and accurate barcode scanning during goods transit
Factory Assembly Line Operations: Real-time barcode decoding for MES system input and product traceability
Access Control & Barrier Systems: Superior motion tolerance eliminates precise alignment requirements
Self-Service Terminal Systems: Large scanning window and omni-directional design for efficient retail checkout and mobile payment processing
