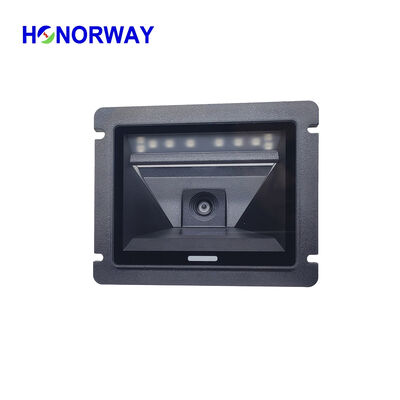

Fixed Mount Barcode Scan Module High Definition Decoding For Conveyor MES Tracing

Name: Fixed Mount Barcode Scan Module High Definition Decoding For Conveyor MES Tracing
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-3386D
Price: 28.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-3386D
MOQ:	1
Price:	$26-$30/pcs
Payment Terms:	T/T
Supply Ability:	10Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS ISO9001

Document:

HW-3386D data sheet.pdf

Features:

Available For Long And High Density PDF417, Inversed Datamatrix Code

Product Name:

Barcode Scanner Module For Reading Moving Barcode

Moving Tolerance:

2M/S

Special Design:

Mirror Reflection

Scan Angle:

Rotation360°,tilt±55°,skew±55°

Precision:

4mil(1D); 5mil(2D)

Working Mode:

Auto-sensing Mode,Continuous Mode, Command Control Mode

Advantage:

Not Expensive,highly Cost-effective

Packaging Details:

Paper carton

Highlight:

Fixed Mount Barcode Scan Module

High Definition Decoding Barcode Scan Module

Barcode Scan Module For Conveyor

Product Description

Fixed Mount Megapixel Good Moving Tolerance Barcode Scanner Module For Conveyor MES Tracing

Premium embedded 1D/2D barcode scanner module designed for conveyor systems and self-service machines with exceptional moving barcode reading capabilities.

Product Overview

The HW-3386D is a superior embedded barcode scanner module that excels in reading moving barcodes with stable decoding at velocities up to 2m/s. Featuring 360° all-round scanning capability, this module captures barcodes accurately regardless of entry direction, overcoming the limitations of conventional scanners restricted to horizontal or vertical motion tolerance.

Equipped with a top-tier camera sensor for ultra-fast image capture, advanced modular software framework, and enhanced CPU processing power, the HW-3386D delivers industry-leading motion tolerance performance.

Core Advantages

Full-Range Motion Scanning: 360° blind-spot-free recognition of dynamic 1D and 2D barcodes
High-Definition Decoding: 1280×800 megapixel resolution for effortless reading of high-density barcodes
Robust & Integratable Design: Durable casing with acrylic shield and elevated scanning window for seamless integration
Accurate Near-Distance Reading: Specular reflection optical configuration enhances short-range scanning precision
Versatile Scanning Window: Compatible with various barcode dimensions and mobile screen barcode scanning
Competitive Value: Made entirely in China with dependable quality at budget-friendly pricing

Technical Parameters

Reading Performance

Image Sensor	CMOS global shutter
Resolution	1MP, 1280×800 pixels
Decoding Capacity	Supports paper and screen barcodes including QR, MicroQR, PDF417, MicroPDF, DataMatrix, Aztex, Maxicode, Hanxin, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, and more
Precision	4mil (1D); 5mil (2D)
Light Source	Red LED for illumination
View Angle	64°(H) × 50°(V)
Scan Angle	Rotation 360°, tilt ±55°, skew ±55°
Min Contrast	20%
Motion Tolerance	2M/S
Trigger Mode	Continuous, Motion sensing, Host Mode
Typical DOF	Code128 (5mil) 20-90mm, Code 39(4mil) 20-60mm, QR code(20mil) 35-220mm, PDF417(5mil) 20-80mm, PDF417(15mil) 30-160mm

Performance may be impacted by barcode quality and environmental conditions

Mechanical and Electrical

Interface	USB, USB COM, TTL, RS232
Working Voltage	DC 5V±10%
Current	Max 450mA (working), 190mA (typical)
Dimensions	114.5(W) × 93.5(D) × 49.5(H) mm
Weight	160g (without cable)
Indication	Blue LED and speaker

Environmental Requirements

Working Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5%-95% (Non-condensing)
Light Brightness	0-100,000 LUX

Accessories

USB cable × 1.5M; other cable types can be customized

Use Cases

Featuring rational structural design, built-in mirrors for extended light paths, high-speed image sensors, and efficient decoding chips, the HW-3386D serves multiple industrial applications:

Conveyor-based Logistics Sorting: Rapid and accurate barcode capture on moving cargo
Workshop Production Line Workflows: Real-time barcode decoding for MES data entry and product lifecycle tracking
Gate & Access Management Systems: Superior motion tolerance enables smooth traffic flow without precise alignment
Self-Service Kiosks: Large scanning window and omni-directional recognition for quick product barcode and mobile payment code scanning at supermarket checkouts

Frequently Asked Questions

Can I have a sample for testing first?

Yes, samples for testing are available. We maintain samples in stock for evaluation purposes.

Can I arrange shipping by myself?

Yes, you are welcome to arrange your own shipping. After goods are finished, you can have your forwarder pick up the goods from our factory.

Do you accept OEM orders or custom tailoring?

Yes, we are professional barcode scanner manufacturers with design expertise to meet your specific requirements.
