OEM Imaging Embedded Barcode Scanner Engine QR Barcode Scan Engine Anti Glare

Name: OEM Imaging Embedded Barcode Scanner Engine QR Barcode Scan Engine Anti Glare
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1258D
Price: 17.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1258D
MOQ:	1
Price:	$15-20/pcs
Payment Terms:	T/T
Supply Ability:	20Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS ISO9001

Document:

HW-1258D data sheet.pdf

Product Name:

Anti-glare Barcode Scanner Engine

Pixel Resolution:

1280*720P

Decoding Capacity:

1D+2D+inversed Datamatrix,long PDF417

Power Supply:

DC 3.3V±10%

Protocol:

TTL, USB

Scan Speed:

300times/s

Minimum Barcode:

4mil(1D); 5mil(2D)

Trigger Mode:

Continuous, Auto Sensing, Host Mode Etc.

Advantage:

Work Under Sunshine

Packaging Details:

Paper carton

Highlight:

Anti Glare Barcode Scanner Engine

OEM Imaging Barcode Scanner Engine

OEM QR Barcode Scan Engine

Product Description

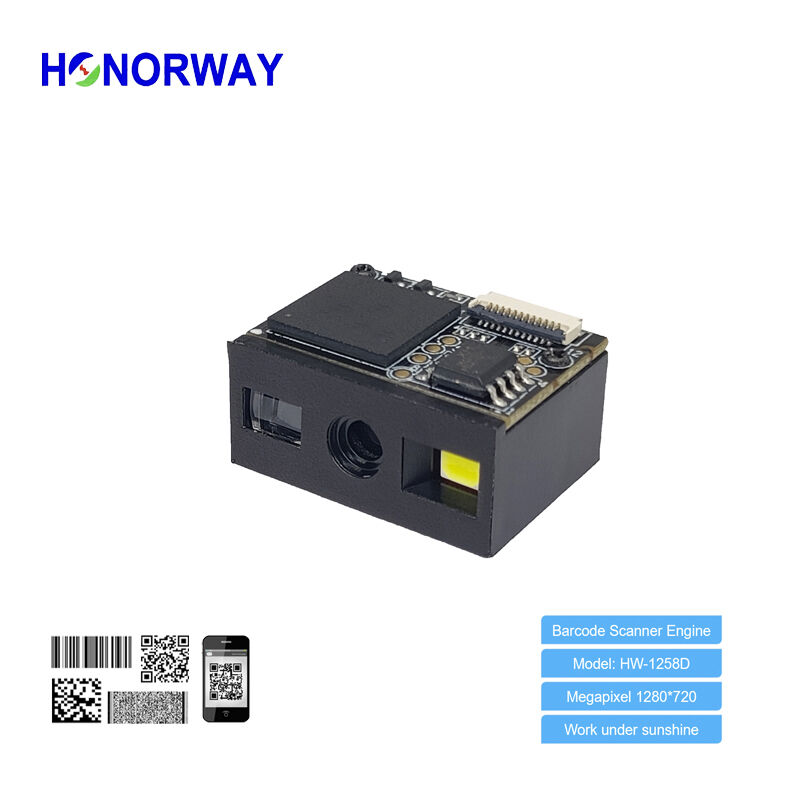

HW-1258D OEM Imaging Embedded Barcode Reader Module

Compact QR barcode scanner engine with 1280×720 resolution,100fps refresh rate, designed to work effectively in sunlight conditions. This highly integrated scanning module features ultra-small dimensions of 21.6×16.3×11.7mm, minimizing internal space requirements in terminal devices.

Core Features

High-Light Adaptability: Maintains stable reading performance for screen and paper barcodes under sunlight or strong light conditions with excellent anti-glare capability
High-Density Barcode Decoding: Supports scanning of high-density barcodes including long PDF417 codes on driver's licenses (60-140mm effective reading distance)
Special Symbology Support: Capable of recognizing inverted DataMatrix codes for specialized identification scenarios
External Device Control: Provides I/O interfaces for controlling external LEDs and buzzers for expanded functionality
Host Command Triggering: Allows scan activation and deactivation via host system commands for flexible integration

Technical Specifications

Reading Performance
Image Sensor	CMOS
Resolution	1MP, 1280×720 pixels
Decoding Capacity	Supports paper and screen barcodes including QR, DataMatrix, PDF417, Code 128, EAN-13, UPC-A, and 30+ additional symbologies
Precision	4mil (1D); 5mil (2D)
Light Source	Red LED for aim, white LED for illumination
View Angle	56.7°(H) × 35°(V)
Scan Speed	300 scans/second
Typical Depth of Field	EAN13: 40-300mm, QR Code: 40-260mm, PDF417: 40-200mm
Mechanical & Electrical
Interface	USB, USB COM, TTL
Working Voltage	DC 3.3V ±10%
Current	Max 350mA (working), 200mA (typical)
Dimensions	21.6mm × 16.3mm × 11.7mm
Weight	3g
Environmental Requirements
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Light Brightness	0-100,000 LUX

Application Scenarios

Outdoor & High-Light Environments: Access control devices, turnstiles, and self-service terminals exposed to direct sunlight
Handheld Mobile Devices: Portable barcode scanners and handheld terminals for retail, warehousing, logistics, and healthcare
Payment & Checkout Terminals: POS machines and cash registers for improved barcode recognition efficiency
