OEM Compact Mini Barcode Reader Module UART 3.3V Supply 6.8mm Thickness

Name: OEM Compact Mini Barcode Reader Module UART 3.3V Supply 6.8mm Thickness
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1211E
Price: 12.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1211E
MOQ:	1
Price:	$11-14/pcs
Payment Terms:	T/T
Supply Ability:	20Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS ISO9001

Document:

HW-1211E data sheet.pdf

Product Name:

6.8mm Height Barcode Reader Engine

Supported Barcode Type:

1D Bar Code, 2D Code,QR

Working Current:

Max 190mA

Reflesh Rate:

120fps

Customization:

OCR Can Be Optional For Passport MRZ

Certification:

CE ROHS

Feature:

The Smallest Dimensions

Advantage:

Highly Cost-effective, Work Under 85degrees

Packaging Details:

Paper Carton

Highlight:

6.8mm Thickness Barcode Scanner Engine

3.3V Supply Barcode Reader Module

Compact Mini Barcode Reader Module

Product Description

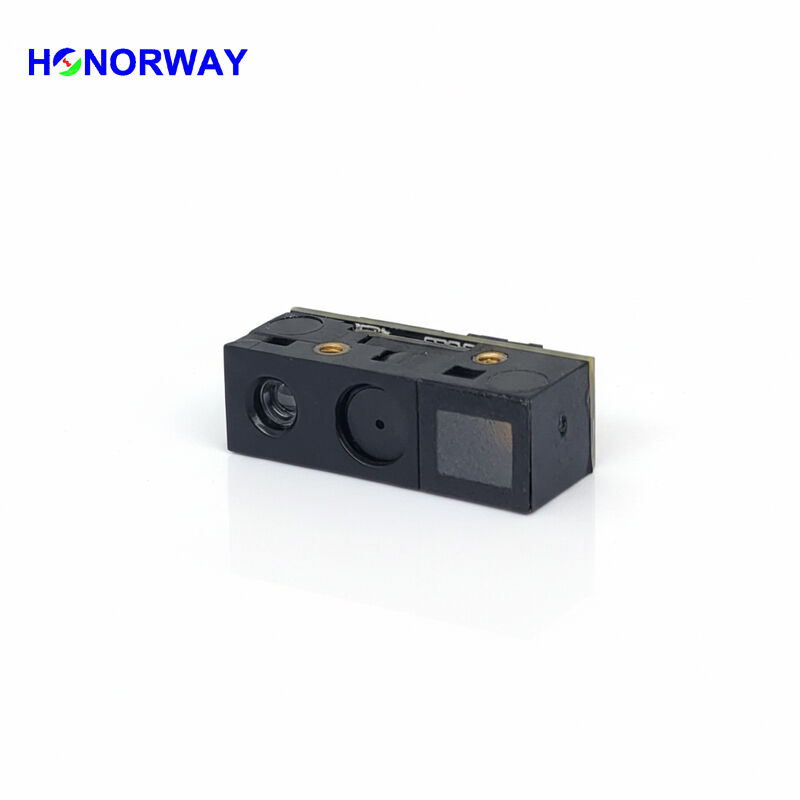

OEM Compact Mini 6.8mm Thickness Barcode Reader Module

Engineered for integration where space and durability are critical, the HW-1211E is an ultra-thin barcode scanning engine. Its compact form factor, measuring only 6.8mm in thickness, maximizes internal design freedom for device manufacturers. Dual lighting systems—a white fill light and a red aiming beam—work in tandem to ensure precise image acquisition and user-friendly targeting.

Product Overview

At its core, a 0.3MP sensor with global shutter technology captures 120 images per second, delivering high-speed reading of all common barcode symbologies with minimal errors and consistent reliability.

The module features an innovative 13-pin FFC connector interface that includes an auxiliary I/O channel. This added connectivity provides developers with enhanced flexibility to address complex project requirements and enable advanced functional expansions.

Exceptional environmental adaptability is a hallmark of the HW-1211E. It maintains stable performance in ambient temperatures as high as 85°C, a threshold exceeding that of most comparable engines, owing to its carefully selected, heat-resistant internal components.

Core Benefits

Industry-Leading Thinness: 6.8mm chassis delivers unmatched space-saving advantages for compact product designs.
Robust Thermal Endurance: Guarantees continuous operation under extreme heat up to 85°C.
Expanded Development Flexibility: The supplementary I/O port unlocks greater potential for custom functionality and integration.
Programmable Operation: Enables direct control over scanning parameters, modes, and interfaces through a command protocol.
Adaptable Scanning Modes: Offers a suite of modes including triggered, automatic, continuous, and command-driven operation.

Technical Specifications

Reading Performance
Image Sensor	CMOS global shutter
Resolution	752×480 pixels, 0.3MP, 120fps
Decoding Capacity	Support paper and screen barcodes 2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc. 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar, etc. Support customization for OCR-A/OCR-B
Precision	3mil (1D), 5mil (2D)
Light Source	620nm Visible Red Diode, white LED for illumination
Scan Angle	Rotation 360°, tilt ±55°, skew ±55°
Min Contrast	20%
Trigger Mode	Manual, Continuous, Motion sensing, Host Mode, etc.
Typical DOF	Code128 (10mil) 50-260mm Code 39 (4mil) 50-150mm QR code (20mil) 50-260mm PDF417 (5mil) 30-120mm Performance may be impacted by barcode quality and environmental conditions

Mechanical and Electrical
Interface	TTL232, USB (KBW/COM) by 13pin FFC flat cable (0.3mm pitch)
Working Voltage	DC 3.3V ±0.3V
Current	Max 190mA (working), ≤10mA (TTL standby)
Dimensions	21(W) × 8.8(D) × 6.8(H) mm
Weight	2g
Indication	LED fill light (can trigger external buzzer and LED indicator)
Installation	2pcs M1.6mm screws, locking depth not exceeds 1.5mm

Environmental Requirements
Working Temperature	-30°C to 70°C
Storage Temperature	-40°C to 80°C
Humidity	5%-95% (Non-condensing)
Light Brightness	0-100,000 LUX

Recommended Use Cases

Space-Critical Integrations: Ideally suited for ultra-slim portable devices where internal real estate is severely limited.
Thermally Demanding Operations: Provides dependable service in high-temperature field applications, including industrial and transportation settings.
Customizable Medical Devices: Meets the high flexibility requirements of medical technology with its configurable I/O for specialized control functions.
