Wide Angle Design QR Code Reader 1D 2D Barcode Scan Engine For Ticket Machine

Name: Wide Angle Design QR Code Reader 1D 2D Barcode Scan Engine For Ticket Machine
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1260W
Price: 11.00 USD
Availability: InStock

Model Number:	HW-1260W
MOQ:	2
Price:	10-13usd/pcs
Payment Terms:	T/T
Supply Ability:	30Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Wide Angle Barcode Scanner Module

Pixel Resolution:

640*480

Scan Speed:

300T/S

View Angle:

76°(H) X54°(V)

Trigger Mode:

Manual, Continuous, Motion Sensing, Host Mode Etc.

Dimension:

21.6(W)*14.2(D)*12(H)mm

Precisions:

1D Barcode 4mil

Decode Capabilities:

1D Barcode+2D QR Code

Advantage:

Highly Cost-effective, Wide Reading Range

Application:

HHT,Kiosk,Vending Machine,Ticket Device,etc.

Packaging Details:

Vacuum-formed tray + carton box

Highlight:

Wide Angle QR Code Reader

Wide Angle Barcode Scan Engine

Ticket Machine Barcode Scan Engine

Product Description

Wide Angle QR Code Reader with Closed Reading Distance

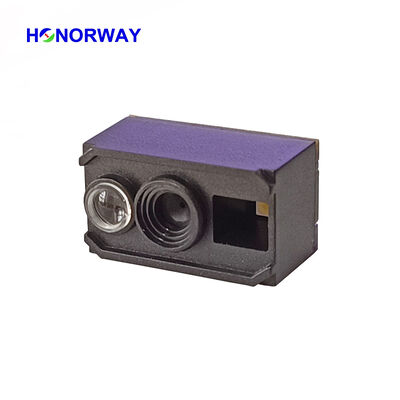

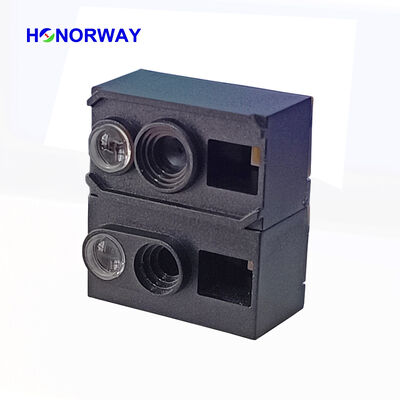

HW-1260W is a cost-effective wide-viewing-angle 2D barcode scanning module featuring a vertical field of view of 76° and horizontal field of view of 54°, making it particularly ideal for short-distance fixed scanning applications.

This module addresses the common issue of barcode alignment difficulty when scanning distance is too long, serving as an ideal solution to improve overall scanning experience. Test results demonstrate that under identical testing conditions, HW-1260W offers a scanning range approximately five times larger than similar products, significantly enhancing barcode reading success rates.

Product Highlights

Wide-angle design: Effectively expands scanning coverage, enabling easy barcode reading at close range and solving alignment difficulties
Strong recognition capability: Easily reads inverted Datamatrix codes on Russian cigarette packs with excellent compatibility
High-performance processor: Equipped with Ingenic processor for stable operation and reliable performance
Excellent decoding algorithm: Delivers outstanding decoding performance and processes barcodes covered with reflective films
Flexible customization & reasonable price: Supports customized requirements with high cost-performance for diverse application scenarios

Technical Parameters

Parameter	Specification
Image Sensor	CMOS
Resolution	640×480 pixels
Decoding Capacity	Supports paper and screen barcodes including QR, PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, EAN, UPC, Code 39, Code 128, and all normal 1D barcodes
Precision	4mil
Light Source	620nm Visible Red Diode, red LED for illumination
View Angle	76°(H) × 54°(V)
Scan Angle	Rotation 360°, tilt ±65°, skew ±65°
Min Contrast	25%
Trigger Mode	Manual, Continuous, Motion sensing, Host Mode
Typical DOF	EAN13 (10mil) 25-160mm, Datamatrix(10mil) 25-120mm, QR code(20mil) 20-200mm, PDF417(6.88mil) 20-120mm, QR(Alipay) on screen 40-260mm
Interface	TTL232, USB(KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage	DC 3.3V±0.3V
Current	160mA (working), 20mA (USB standby), 2mA (TTL standby)
Dimensions	21.4(W) × 13.2(D) × 12(H) mm
Weight	2g
Indication	LED fill light (can trigger external buzzer and LED indicator)
Working Temperature	-20~60℃
Storage Temperature	-40~70℃
Humidity	5%-95% (Non-condensing)
Light Brightness	0-100,000 LUX

Product Applications

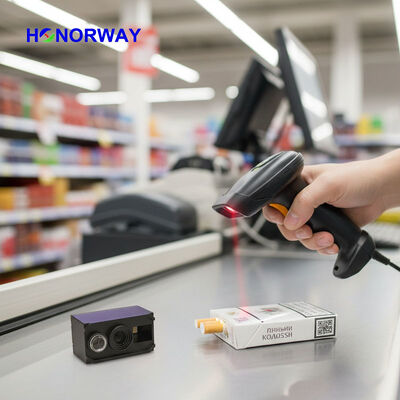

The HW-1260W wide-viewing-angle scanning module is designed for fixed barcode reading scenarios where it is embedded in various self-service terminals. Users simply place the barcode in front of the scanning window to complete identification.

Widely used in many industries and self-service devices, including:

Bus payment systems
Garbage disposal stations
Hospital self-service physical examination report printers
Identity verification and security inspection equipment
