| Brand Name: | HONORWAY |
| Model Number: | HW-1251S |
| MOQ: | 5 |
| Price: | $4-$6/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 30kpcs per month |

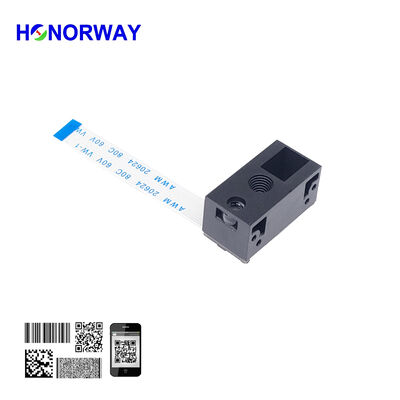

HW-1251S Highly cost-effective OEM barcode Reader module Low consumption 1D 2D Barcode Scanner Engine
Product Introduction
The HW-1251S is a compact barcode scanner engine designed for reading 1D and 2D barcodes. Utilizing image-based decoding technology, it effortlessly scans barcodes on paper, electronic screens, and QR codes, supporting dozens of symbologies including Code128, Code39, EAN, QR, PDF417, and Data Matrix. In addition to excellent performance, it offers significant cost advantages, making it a highly cost-effective product.
Product Features:
1. Cost advantage: Exceptional cost control delivers high value for money;
2. Its ultra-low power consumption saves energy and extends battery life in portable devices, making it popular among developers.
3. Compact structural design allows flexible integration into customer products.
4. Communication via a 12-pin FFC flexible cable supporting USB, USB virtual COM port, and TTL interfaces.
5. Configurable by scanning QR codes in the user manual or via host commands; a detailed development guide is provided.
6. Widely applied, high-volume shipments, and market-proven with reliable quality.
Technical Specification
|
Reading performance |
Image Sensor | CMOS |
| Resolution | 0.3MP pixels,640*480 | |
| Decoding capacity | Support paper and screen barcodes | |
| 2D:QRCode(Mode1,Mode2),MicroQR,DataMatrix,PDF417, MicroPDF417, Aztec, HanXin, Maxicode etc. | ||
| 1D: Code128,Code39,Code93,EAN13,EAN8,UPC_E(E0, E1),ISBN13,Interleaved2of5,Industrial2of5,Matri x2of5, RSS14(GS1Databar), RSSLimited(GS1Datab arLimited), RSSExpanded(GS1DatabarExpanded), RSS14Stack (GS1DatabarStack), RSSExpanded(GS1D atabarExpandedStack), Codebar,MSIPlessey,Code1 1,Standard2of5, Plessey, ChinaPost2of5, Code16K etc. all normal 1D | ||
| Precision | ≥5mil(1D),≥10mil(2D) | |
| Light Source | 620nm Visible Red Diode, white LED for illumination | |
| View Angle | 31°(H) x30°(V) | |
| Scan Angle | Rotation360°,tilt±60°,skew±60° | |
| Min Contrast | 25% | |
| Trigger Mode | Manual, Continuous, Motion detective, Host etc. | |
| Typical DOF |
Code 128(15mil) 45-350mm EAN13(13mil)40-250mm QR code(15mil)35-200mm Code39(10mil) 40-200mm Performance may be impacted by bar code quality and environmental conditions |
|
| Mechanical and electrical | Interface | TTL232,USB KBW/POS |
| Working Voltage | DC 3.3V±5% | |
| Current | 190mA(Max) 120mA(working) 1mA(standby) | |
| Dimensions | 21.5*11*12.2mm | |
| Weight | 2g | |
| Indication | LED fill light (can trigger external buzzer and LED indicator) | |
| Environment Request | Working Tem | -20~60℃ |
| Storage Tem | -40~70℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light brightness | 0-100000LUX |
Application
HW-1251S Barcode scanner engines are extensively used, with handheld scanners being the largest application in retail, supermarkets, and convenience stores. They are also integrated into fixed barcode reader modules for parcel lockers, temporary storage cabinets, waste stations, and self-service kiosks. With flexible adaptability, the HW-1251S can be embedded into customer devices such as POS systems, handheld terminals, ticket machines, vending machines, hospital self-service machine,access control systems, and electronic payment solutions (e.g., Alipay, Google Pay, Apple Pay) across retail, logistics, smart locks, and digital payment industries.
FAQ
1. What is your shipping method?
A: The products can be shipping by DHL. Fedex or UPS for fast delivery. and also can be shipping by sea to save cost.
2. If the goods stock for now?
A: YES. normally we have the standard products on stock. can be shipping out to you within 3 days after the order confirmed
3. Why customer choose us?
A: Competitive price & Excellent quality and timely after-sales service.
