| Brand Name: | HONORWAY |
| Model Number: | HW-1880g |
| MOQ: | 1 |
| Price: | $15-$25/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 30kpcs per month |
HW-1880g Compact Embedded 1D 2D Inversed Datamatrix High Density PDF417 fixed barcode reader for driver license
Product Description

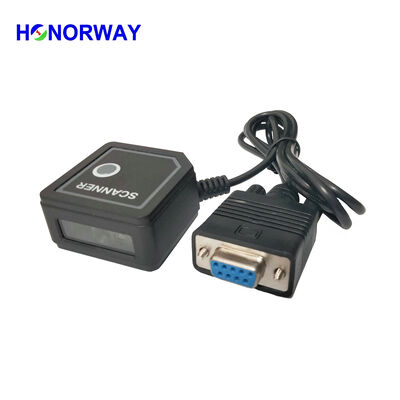

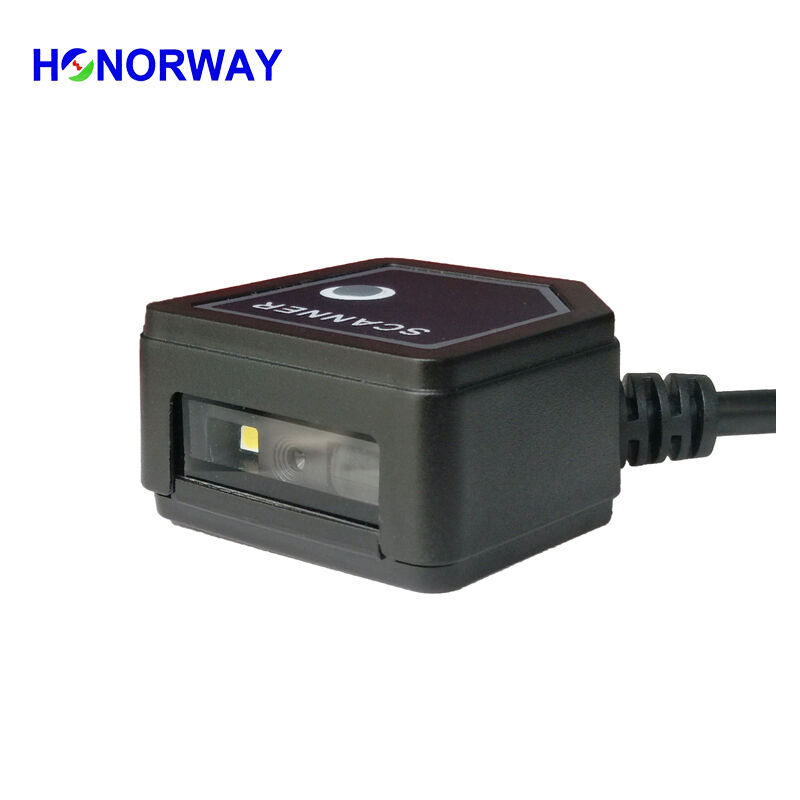

The HW-1880 fixed 2D barcode reader is mainly built for integration into diverse self-service terminals. It supports an extensive range of barcodes: international 1D barcodes, 2D codes, MRZ strings from IDs/passports, lengthy high-density PDF417 on driver’s licenses, reversed Datamatrix codes on cigarette packs in Russia, and more. Equipped with glare resistance, it operates reliably in sunlight and reads both paper-based and electronic screen barcodes, including DPM (Direct Part Marking) codes—permanently etched symbols.
As a series product, it delivers complete functionality adaptable to different requirements. Beyond standard offerings, we customize products per client requests, covering special functionalities, performance tweaks, and interface options such as RS232, RS485, and Wiegand. Sub-model features are summarized in the table below, ordered from lower to higher performance.
| No. | Model Number | Level | Features |
| 1 | HW-1880z | 1 | 0.3MP normal, the cheapest |
| 2 | HW-1880W | 1 | 0.3MP normal, wide angle |
| 3 | HW-1880S | 2 | 0.3MP upgraded,full function |
| 4 | HW-1880E | 2 | 0.3MP upgraded,good for 5mil QR/DM |
| 5 | HW-1880R | 2 | 0.3MP upgraded, good for inversed datamatrix |
| 6 | HW-1880g | 3 | 0.5MP global shutter ,long PDF417 |
| 7 | HW-1880A | 3 | 0.5MP global shutter,Anti-glare |
| 8 | HW-1880H | 4 | 1MP,good for long PDF417 |
| 9 | HW-1880N | 5 | 1MP,support OCR,DPM |
| 10 | HW-1880M | 5 | 1MP wide angle,support OCR, min DOF 7cm@passport |
Parameters List
Technical specs for HW-1880z are shown here. Datasheets for other variants are available for download on our website; feel free to contact us for further details.
|
Reading performance |
Image Sensor | CMOS |
| Resolution | 1MP pixels,1280*800,100fps | |
| Decoding capacity | Support paper and screen barcodes | |
| 2D: QR,PDF417,Data Matrix, Aztec, Matrix code etc. | ||
| 1D: EAN, UPC, Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 etc. all normal 1D barcodes | ||
| Precision | 3mil | |
| Light Source | 620nm Visible Red Diode, white LED for illumination | |
| View Angle | 66°(H) x50°(V) | |
| Scan Angle | Rotation360°,tilt±65°,skew±65° | |
| Min Contrast | 25% | |
| Trigger Mode | Manual, Continuous, Motion sensing, Host Mode etc. | |
| Typical DOF |
EAN13(13mil) 40-250mm Code 39(5mil)40-150mm QR code(20mil)25-280mm PDF417 (6.67mil)30-160mm Performance may be impacted by bar code quality and environmental conditions |
|
| Mechanical and electrical | Interface | USB(HID,COM),TTL,RS232 |
| Working Voltage | DC 5V | |
| Current | 170mA(working) 25mA-USB, 400uA-RS232(Standby) | |
| Dimensions | 44*44*23mm | |
| Weight | 70-100g(with cable) | |
| Indication | Buzzer&LED | |
| Environment Request | Working Tem | -20~60℃ |
| Storage Tem | -40~70℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light intensity | 0-100,000Lux |
Use Cases
Embedded scanning modules are utilized in countless products where barcode reading is essential. Successful implementations of this model include:
1. Package pickup lockers (e.g., Hive Box). Found increasingly in neighborhoods, schools, and industrial parks, these units contain embedded fixed barcode readers.
2. Self-checkout vending machines. Placed in public areas, such machines employ built-in scanners to read product barcodes for inventory control and to scan mobile QR codes for payment.
3. Eco-friendly trash stations. To regulate waste disposal and protect the environment, numerous forward-thinking cities have implemented smart trash stations that use fixed scanners to read QR codes from users’ apps, connecting system records with real actions.
4. Industrial production lines. In manufacturing plants, scanning at each process stage inputs data into MES systems, ensuring the facility operates according to planned procedures.
