FOV QR USB TypeC Fixed Barcode Reader Module With Wide Scan Range Compact Design

Name: FOV QR USB TypeC Fixed Barcode Reader Module With Wide Scan Range Compact Design
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1660W
Price: 14 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1660W
MOQ:	2
Price:	14
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Wide Angle Fixed Barcode Scanner Module

View Angle:

76°(H) X66°(V)

Decoding Capacity:

Support 1D 2D Paper And Screen Barcodes

Precision:

4mil@EAN13

Trigger Mode:

Manual(button), Continuous, Motion Sensing, Host Mode Etc.

Interface:

USB(HID,COM,USB-A,TypeC) ,TTL(UART), RS232(Open Wire Or DB9)

Advantage:

Support Customization

Application:

Fixed Reading,kiosk

Highlight:

TypeC Fixed Barcode Reader Module

USB TypeC Barcode Scanner Module

Compact Design Fixed Barcode Reader

Product Description

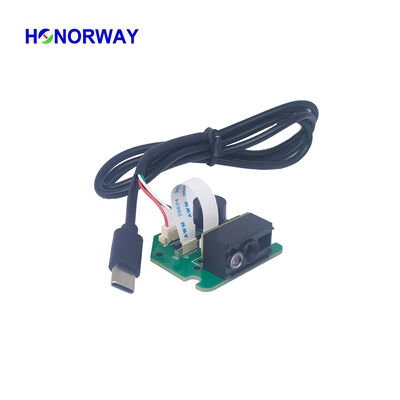

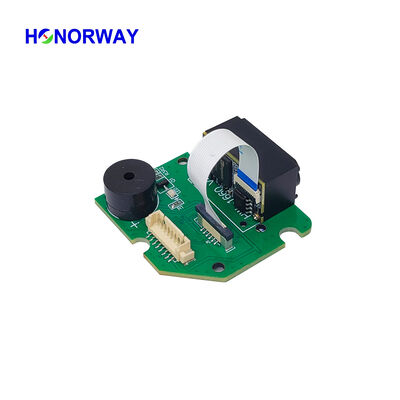

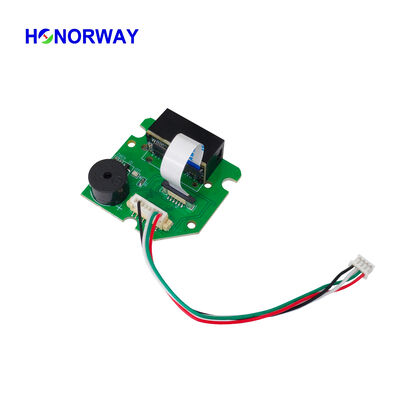

Board-level Wide FOV QR USB TypeC Fixed Barcode Reader Module

The HW-1660W is a compact fixed-mount barcode scanner module engineered for seamless integration into self-service kiosks, access control systems, and industrial equipment. This versatile module reliably decodes both 1D and 2D barcodes including QR, PDF417, and DataMatrix codes.

Compact Design & Flexible Connectivity

Measuring just 37.6 * 36.6 * 14mm with 2mm PCB thickness, the module connects via an 8-pin 1.25mm pitch connector using a 12-pin FFC flexible cable. Interface options include open UART, USB Type-A, USB Type-C, and RS232 with multiple connector configurations available.

Enhanced User Experience

Featuring a wide-angle field of view and short working distance, the HW-1660W provides a large effective scan area that simplifies operation and eliminates alignment challenges for users.

Technical Specifications

Parameter	Specification
Image Sensor	CMOS
Resolution	0.3MP, 640*480
Decoding Capability	Supports paper and screen barcodes 2D: QR, PDF417, Data Matrix, Aztec, Matrix code, etc. 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, and all normal 1D barcodes
Precision	5mil
Light Source	620nm Visible Red Diode, white LED for illumination
View Angle	76°(H) * 66°(V)
Scan Angle	Rotation 360°, tilt ±65°, skew ±65°
Minimum Contrast	25%
Trigger Mode	Manual, Continuous, Motion sensing, Host Mode, etc.
Typical Depth of Field	EAN13 (13mil): 30-150mm Code 39 (5mil): 30-140mm QR code (20mil): 30-210mm PDF417 (6.67mil): 40-110mm Performance may be impacted by barcode quality and environmental conditions
Interface	USB (HID, COM), RS232 (Open wire or DB9 connector)
Working Voltage	DC 5V
Current	170mA (working) 25mA-USB, 400uA-RS232 (Standby)
Dimensions	38 * 36 * 20mm
Weight	30g
Indication	Buzzer & LED

Application Notes

Board-Level Integration

The HW-1660W is offered as a board-level module without external plastic housing, making it ideal for integration inside equipment where the enclosure provides protection.

Optimization Tips

For reflective surfaces such as laminated ID cards or passports, tilting the scanner from 90° to approximately 85° can improve decode performance. When mounting behind glass panels, position the glass flush against the scanner to prevent optical refraction that may impact read accuracy.
