| Brand Name: | HONORWAY |
| Model Number: | HW-1880M |
| MOQ: | 2 |
| Price: | 28 |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs/month |
| Image Sensor | CMOS |
|---|---|
| Resolution | 1MP, 1200*720 pixels, 100fps |
| Decoding Capacity | Support paper and screen barcodes; OCR A/B optional 2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc. 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, etc. |
| Precision | 4mil |
| Light Source | 620nm Visible Red Diode, white LED for illumination |
| View Angle | 89°(H) x 76°(V) |
| Scan Angle | Rotation 360°, tilt ±65°, skew ±65° |
| Min Contrast | 20% |
| Trigger Mode | Manual, Continuous, Motion sensing, Host Mode, etc. |
| Typical DOF | Code128 (5mil) 40-230mm Code 39 (4mil) 60-200mm QR code (20mil) 35-340mm PDF417 (5mil) 40-120mm MRZ code (Standard passport) 70-150mm Performance may be impacted by barcode quality and environmental conditions |

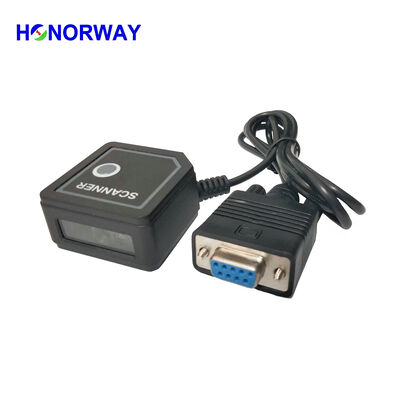

| Interface | USB, USB COM, TTL232, RS232 |
| Working Voltage | DC 5V±10% |
| Current | Max 230mA (working) ≤1mA (TTL standby) |
| Dimensions | 43(W)*43(D)*23(H)mm |
| Weight | 35g |
| Indication | LED fill light (can trigger external buzzer and LED indicator) |
