HW-1660W Wide-Angle Short-Distance 1D/2D QR Fixed Barcode Reader

Compact Fixed-Mount Scan Module for Self-Service Kiosks

The HW-1660W is a space-saving fixed-mount barcode reader engineered for effortless integration into payment kiosks, ticketing terminals, and document processing systems. This compact module delivers reliable capture of 1D barcodes and 2D codes including QR, PDF417, and DataMatrix.

Key Features

Ultra-compact footprint: 37.6 x 36.6 x 14mm with 2mm PCB thickness

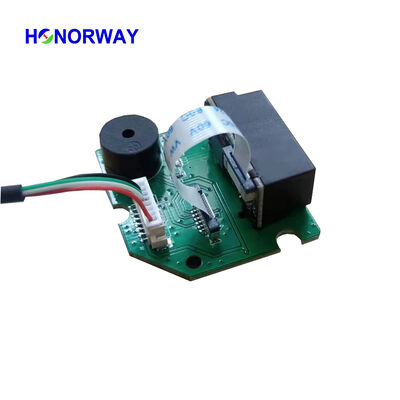

12-pin FFC flex cable connecting scan engine to board
Wide field of view (76°H x 66°V) for easy barcode presentation
Short-distance reading capability eliminates precise positioning requirements
Multiple interface options: UART, USB Type-A, USB Type-C, RS232
Supports both paper and screen barcodes with 4mil precision

Technical Specifications

Image Sensor	CMOS
Resolution	0.3MP, 640×480
Light Source	620nm Visible Red Diode, white LED for illumination
View Angle	76°(H) × 66°(V)
Scan Angle	Rotation 360°, tilt ±65°, skew ±65°
Min Contrast	25%
Interface	USB (HID, COM), UART, RS232 (Open wire or DB9 connector)
Working Voltage	DC 5V
Current	170mA (working), 25mA-USB, 400uA-RS232 (Standby)
Dimensions	L38 × W36 × H20mm
Weight	30g
Indication	Buzzer & LED

Barcode Decoding Capability

2D Barcodes

QR, PDF417, Data Matrix, Aztec, Matrix code, and more

1D Barcodes

EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, and all normal 1D barcodes

Depth of Field Performance

Barcode Type	Typical Reading Range
EAN13 (13mil)	30-150mm
Code 39 (5mil)	30-140mm
QR code (20mil)	30-210mm
PDF417 (6.67mil)	40-110mm

Note: Performance may be impacted by barcode quality and environmental conditions

Trigger Modes

Manual, Continuous, Motion sensing, Host Mode, and others

Installation & Deployment

As a board-level module without an external housing, the HW-1660W is designed for installation inside equipment where the device casing provides physical protection.

Optimization Tips

When scanning reflective documents (laminated ID cards), adjust scanner angle from perpendicular to 85° tilt to minimize glare
For installations behind protective glass, place glass in direct contact with scanner to avoid refraction-related decoding issues
Custom cabling and connectors available to match specific host requirements

Connectivity Options

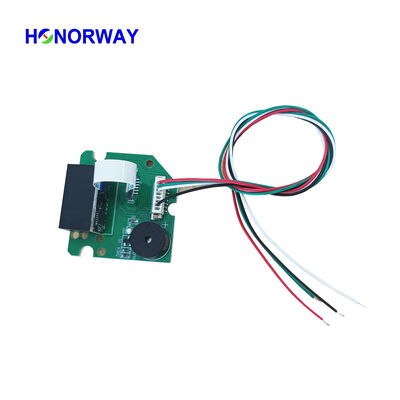

Standard UART wiring

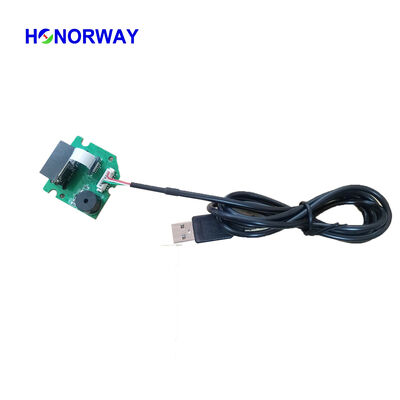

USB Type-A interface
USB Type-C interface

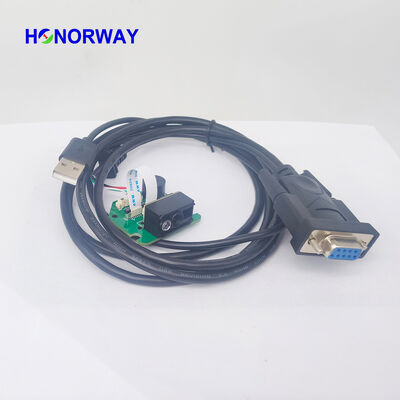

RS232 with DB9 connector options:
- DB9 connector for data with USB power
- DB9 connector with power supplied via pin 9
