| Brand Name: | HONORWAY |
| Model Number: | HW-5660S |
| MOQ: | 2 |
| Price: | $10-13/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs/month |

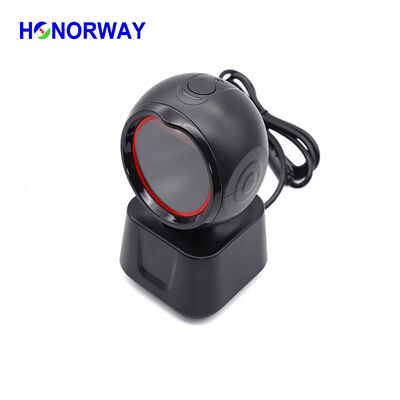

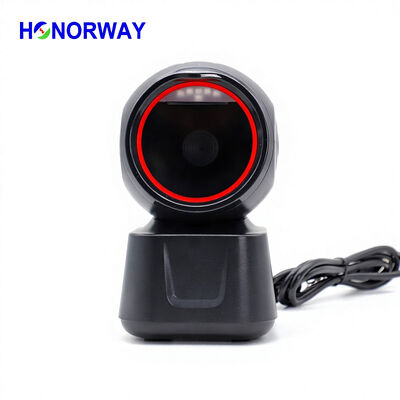

HW-5660S 2D Desktop Barcode Scanner - Best Cost-Effective Choice for Global Users
The HW-5660S stands as the most cost-effective 2D desktop barcode scanner, helping global customers reduce cost pressure effectively. Adopting a 0.3MP global exposure camera, it brings reliable motion tolerance, enabling fast reading of moving barcodes when approaching the scan window and bringing better user experience. It offers multiple shell options with the same price and equal high quality.
| Image Sensor | CMOS |
|---|---|
| Resolution | 640 x 480, 60fps, global shutter |
| Decoding Capacity | Support paper and screen barcodes 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite |
| Precision | 5mil @Code 39, PCS=90% |
| Light Source | LED Red light |
| Scan Angle | Rotation 360°, tilt ±60°, skew ±54° |
| Scan Speed | 300 times / sec |
| Trigger Mode | Auto Detective mode, continuous mode |
| Print Contract | 25% |
| Scan Distance | 20mil (QR) 5-80mm, 5mil(PDF417) 5-70mm, 5mil(code128) 1-80mm, 20mil(DM) 5-80mm, 13.34mil(EAN13) 5-245mm, 5mil(EAN13) 1-80mm Performance may be impacted by bar code quality and environmental conditions |
| Interface | USB, RS232, USB COM, HID POS etc. |
| Working Voltage | 5VDC ±10% |
| Current | Working <210mA, Standby <170mA |
| Cable Length | 1.3M |
| Weight/Packing | 345g, 170×115×115mm (Packing size) |
| Indication | LED & Buzzer |
It supports data editing functions, such as adding prefix, suffix, inserting text, setting CODE ID and terminator. When scan fails, it can be set to output RF or not. Terminator supports Enter, Line Feed, TAB or none.

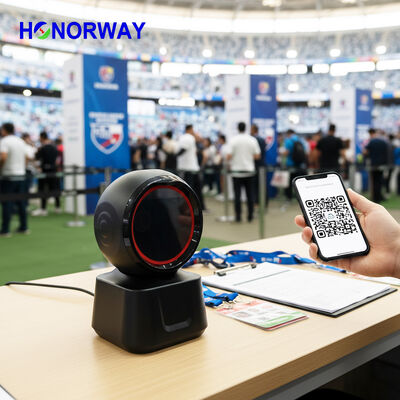

Widely used in grocery stores for product barcode recognition and e-wallet QR code payment, works perfectly with POS systems. USB plug and play, compatible with OPOS drivers, no extra drivers needed.
