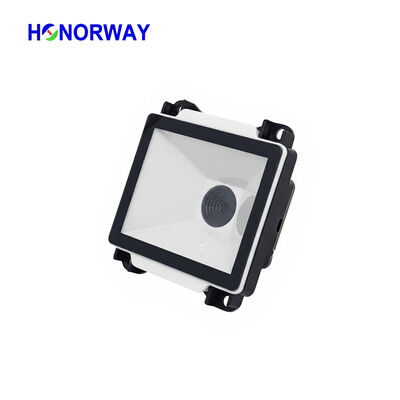

HW-1870D Fixed 1D 2D QR Barcode Scanner Module for High Density QR on Vietnamese ID Cards & Bus Metro Ticket System
HW-1870D Fixed Barcode Scanner Module - Reads High-Density QR Codes on Vietnamese ID Cards from 2cm, 1D/2D Decoding, Multiple Interfaces (USB/RS232/RS485), Anti-Glare for Screen - Best Budget Embedded Barcode Reader for Ticket Kiosks & Access Control
Looking for an affordable embedded barcode scanner that handles high-density QR codes with ease? The HW-1870D from Honorway is a compact fixed-mount barcode reader purpose-built for identity verification, ticketing, and retail automation. It reliably decodes 1D barcodes and 2D QR codes from both paper and electronic displays - making it a versatile choice for modern self-service applications.
Interface Flexibility - Connect Your Way
The HW-1870D eliminates compatibility headaches with its multiple physical interfaces: a 9-pin UART socket (1.25mm pitch), a 12-pin FFC connector, and a Micro USB port. These support USB, USB COM, TTL, RS232, and RS485 protocols - giving you the freedom to integrate this barcode scanner module into virtually any host system without costly interface adapters.
Superior Optical Performance
High-density QR reading: Specifically optimized to decode tiny, dense QR codes - such as those found on Vietnamese national ID cards - a capability that many competing scanners lack
Close-range scanning: With a minimum reading distance of just 2 cm, it fits perfectly into space-constrained kiosk designs where users place their ID or phone close to the scanner window
Screen QR with anti-glare: Reads QR codes from mobile screens even in bright sunlight - essential for outdoor ticket gates and payment kiosks
Dark-environment ready: The built-in white LED illuminator can be set to always on, trigger-on-detection, or always off, ensuring consistent scanning in low-light or no-light conditions
Motion-tolerant: Captures barcodes on moving objects accurately - ideal for conveyor systems and high-throughput access points
Real-World Success Story - Vietnam ID Card Project
In several high-profile deployments across Vietnam, the HW-1870D has been selected for identity recognition kiosks specifically to read the high-density QR codes printed on Vietnamese citizen ID cards. While other modules in the same price range failed to deliver reliable reads, the HW-1870D performed flawlessly - securing Honorway a competitive edge in this growing market.
Design & Integration Notes
Dimensions: 65×61×28mm with four corner mounting holes for secure installation
The reading window comes with a transparent acrylic protective cover; if your host device already has its own glass/acrylic panel, remove the cover to avoid double-layer interference that may reduce read rates
Key Benefits at a Glance
5 communication interfaces in one compact module
Reads paper, screen, high-density, and moving barcodes
Built-in illumination for 24/7 operation
Proven on Vietnamese national ID QR codes
High value, low cost - ideal for volume OEM projects
If you're sourcing a fixed barcode scanner for kiosks, a QR code reader module for ID verification, or a budget-friendly embedded barcode engine with multi-interface support, the HW-1870D is your smartest choice - performance you can trust, at a price you can afford.
