| Brand Name: | HONORWAY |
| Model Number: | HW-1823 |
| MOQ: | 2 |
| Price: | $18-20/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs/month |

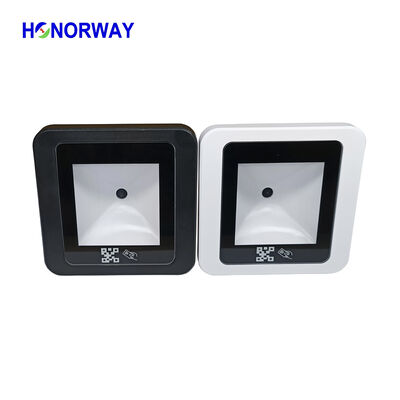

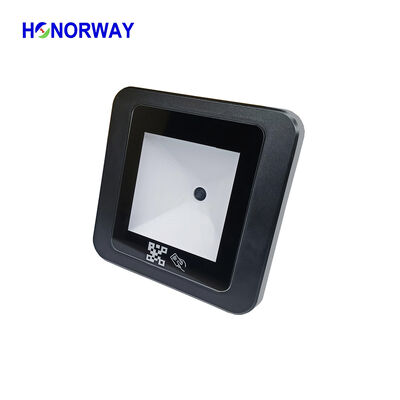

The HW-1823 is a smart dual-function reader combining QR code scan and RFID card reading in one device. Ideal for office access, residential entry, attraction ticketing, government lobbies and automated turnstiles, it uses a standard 86-type industrial structure for wide compatibility. Supporting Wiegand, USB, RS232, RS485 output, it easily connects to access controllers and upgrades traditional card systems to smart systems.
| Image Sensor | CMOS |
|---|---|
| Resolution | 0.3MP 640×480 pixels |
| Decoding Capacity | Support paper and screen barcodes 2D: QR, PDF417, Data Matrix code etc. 1D: Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC-A, Code 39, UPC-E, etc. |
| Barcode Density | 5mil |
| Light Source | 624nm Visible green LED |
| Scan Angle | Rotation 360°, tilt ±50°, skew ±50° |
| Reading Mode | Auto-sensing |
| Scanning Speed | 350 times/s |
| Typical DOF | 30-100mm (10mil code128) 30-200mm (20mil QR) Performance may be impacted by bar code quality and environmental conditions |
| RFID Frequency | 13.56MHz |
| Card Type | Mifare, NFC tag, E-NFC |
| Reading Distance | 0-50mm (depend on card type) |
| Reading Speed | <100ms |
| Interval Time | 0.8S |

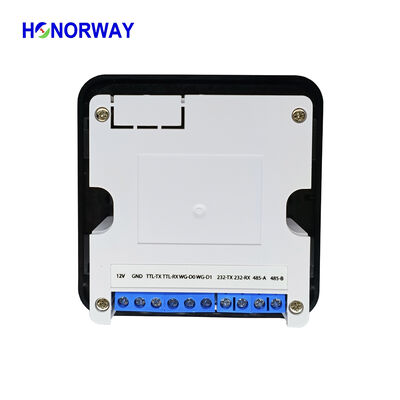

| Interface | USB, USB COM, TTL, RS232, RS485, Wiegand |
| Working Voltage | DC 5-12V |
| Current | 800mA (working) |
| Dimensions | 86mm × 86mm × 42mm |
| Weight | 150g (NW) |
| Indication | Buzzer & LED |
| Operation System | XP WIN7/8/10 LINUX |
| Working Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10%-90% (Non-condensing) |
| Light Immunity | 0-10,000 Lux |
