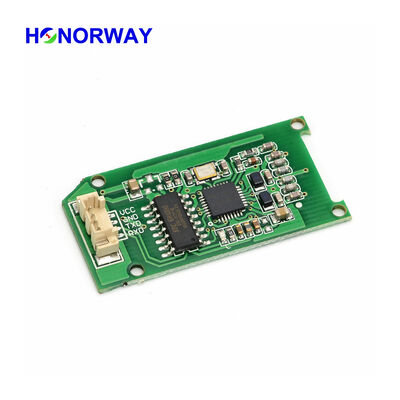

Auto Sleep 13.56MHz Mifare Card NFC RFID Reader Writer Module For Access Control System

Name: Auto Sleep 13.56MHz Mifare Card NFC RFID Reader Writer Module For Access Control System
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-M06
Price: 8 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-M06
MOQ:	2
Price:	$8/pcs
Payment Terms:	T/T
Supply Ability:	30Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

NFC Reader And Writer Module

Spported Card Type:

MF0: Ultralight、Ultralight C、NTAG203、NTAG213 F1: S50、S70、FM11RF08 CPU: FM1208 And Compatible Card

Power Voltage:

3.3-5V DC

Working Frequency:

13.56MHz

Working Mode:

Active Detective, Command Trigger Mode

Dimensions:

40*20mm

Advantage:

Inexpensive NFC Reader And Writer Module

Application:

Payment, Door Lock

Highlight:

NFC RFID Reader Writer Module

13.56MHz NFC Reader And Writer

NFC Reader Writer For Access Control

Product Description

Auto Sleep 13.56MHz Mifare Card NFC RFID Reader Writer Module With UART For Access Control System

Designed for battery-powered smart devices, the HW-M06 is a high-integration 13.56MHz RFID module that delivers reliable read/write performance for Mifare, ISO14443 Type A, and CPU cards. With an ultra-low static current of ≤30µA and a built-in sleep mode, this module is ideal for smart locks, access control systems, and card payment applications.

Key Features

Ultra-Low Power Consumption - Static current ≤30µA, supporting deep sleep for battery-critical applications.
Wide Card Compatibility - Works with Mifare S50/S70, Ultralight, NTAG, FM1208, and more.

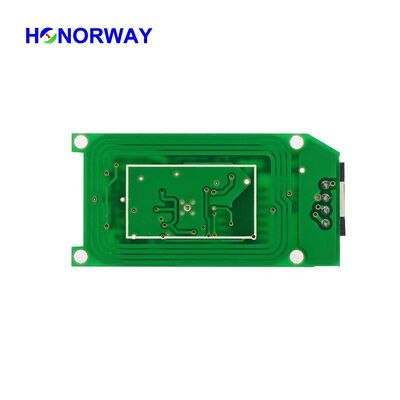

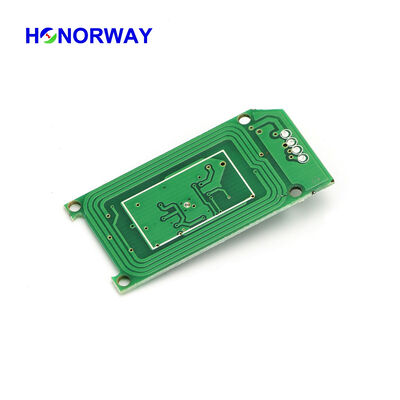

Integrated Antenna - On-board antenna delivers a read range up to 5cm.
UART TTL Interface - Simple serial communication; default baud rate 19200 (configurable).
Rich Command Set - Includes card search, read/write block, wallet operations, sleep mode, buzzer/LED control.
Compact Form Factor - 40mm × 20mm DIP package for easy integration.
Built-in Buzzer & Watchdog - Enhances system stability and user feedback.

Typical Applications

Smart locks and hotel lock systems
Access control and attendance terminals
Campus cards and electronic signage
Public transportation readers
Locker management systems
Anti-counterfeiting and production tracking

Developer-Friendly Integration

The HW-M06 offers a straightforward UART communication protocol, enabling rapid development with minimal effort. Complete card operations can be executed through simple commands, making it ideal for both prototype testing and mass production.
