Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control

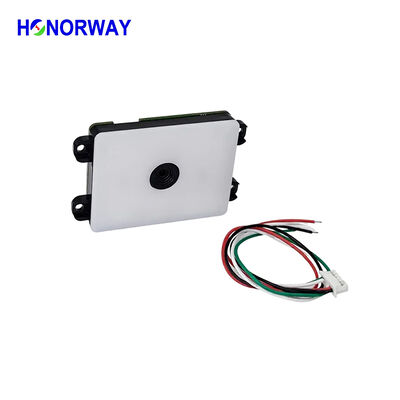

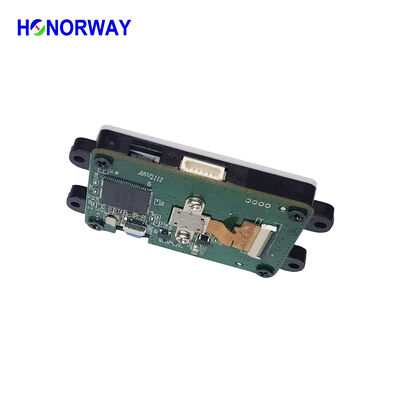

HW-1522 is an ultra-slim embedded scanning module integrating high-performance image scanning and NFC contactless communication. At only 8.3mm thick and 12g weight, it fits easily into space-limited devices. Using advanced CMOS image technology, it supports motion scanning and fast reading of all major 1D/2D barcodes. It fully complies with ISO/IEC 14443 A/B and ISO/IEC 18092 (NFCIP-1) to read mobile payments, ID credentials, MIFARE, FeliCa and NFC cards. It delivers all-in-one data capture for smart devices.

• All-in-one scanning: Reads QR, DM, PDF417, Hanxin, Code128, EAN-13, UPC and NFC cards
• Ultra-thin & lightweight: 54.6*33.4*8.3mm, 12g, easy to embed
• High scanning performance: 0.01s capture, motion tolerance, omnidirectional reading, anti-glare up to 100,000 Lux
• Flexible NFC: Independent serial port, 0-4cm reading distance
• Rich interfaces: USB, TTL (3.3V/5V), buzzer, LED, trigger
• Wide voltage & temperature: 3-6V, -30℃ to 70℃
• Dual connectors: 1.25mm cable & 0.5mm FPC for flexible design

• Smart payment terminals
• Access control & time attendance
• Intelligent transportation: turnstiles, taximeters, parking
• Self-service kiosks: vending, ticketing, lockers
• Industrial IoT: production line, inspection, asset tracking
