Anti Sunshine Barcode 13.56MHz NFC QR RFID Reader With Serial Port For Turnstile

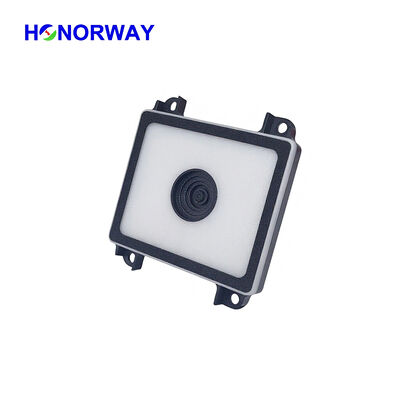

The HW-1580N is a compact embedded scanning module that combines high-performance 2D barcode reading with integrated 13.56MHz RFID/NFC functionality. Designed for seamless integration into kiosks, access control systems, medical devices, and industrial equipment, it offers flexible connectivity options and reliable decoding under challenging lighting conditions.

• High-Performance Decoding - Equipped with a 0.3MP global shutter CMOS sensor (752×480 pixels), the HW-1580N decodes 1D and 2D barcodes on paper and screens with a minimum resolution of 4mil. Decoding speed and accuracy are maintained even in direct sunlight, thanks to built-in anti-glare capability.
• Integrated RFID/NFC - Supports 13.56MHz RFID with a read range of 0-40mm. Compatible with common card types including S50, S70, NTAG series, Mifare series, and Fudan M1, making it suitable for payment terminals, identity verification, and asset tracking applications.
• Flexible Interfaces - Offers RS232, USB (HID/COM), and TTL interfaces, with a 12-pin FFC connector and additional 4-pin UART and USB connectors for simplified integration. The module supports multiple trigger modes: manual, auto-sensing, continuous, and host mode.
• Compact and Integration-Ready - With dimensions of 65 × 61.5 × 18.5mm and a weight of just 20g, the HW-1580N is designed for space-constrained enclosures. The front surface is intentionally left without glass to allow integrators to incorporate their own protective panels.
• Environmental Durability - Operates reliably in temperatures ranging from -20°C to 60°C and under light immunity up to 100,000 Lux, ensuring consistent performance in indoor and outdoor installations.

• Self-service kiosks and vending machines
• Access control and time attendance systems
• Medical device integration
• Industrial handheld terminals
• Payment terminals with NFC capability
