1D 2D QR Fast Charging Portable Barcode Scanner With Cradle And Battery Management

Name: 1D 2D QR Fast Charging Portable Barcode Scanner With Cradle And Battery Management
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-3968B
Price: 28 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-3968B
MOQ:	2
Price:	$28/pcs
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Fast Transmission Wireless Barcode Reader

Image Sensor:

CMOS Global Shutter 100fps

Typical DOF:

QR 20mil 11bytes Paper 10-230mm

Battery:

2600mAH Lithium Battery With BMS

Charging Time:

Base: Charge Time < 4H,scanner:fast Charging 24V@3A,time<2H

Cable Length:

1.8M

Data Process:

Batch Upload Fast And No Breakpoint

Transmission:

70Meters(open Air)

Packaging Details:

QTY:18PCS 50.5*37.8*30.5cm N.W:9KG GW:10KG

Highlight:

QR wireless Bluetooth barcode scanner

fast charging portable barcode scanner

QR barcode scanner with battery management

Product Description

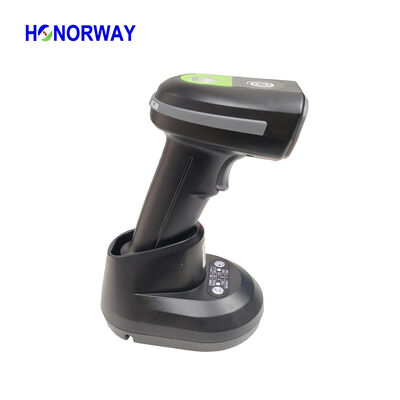

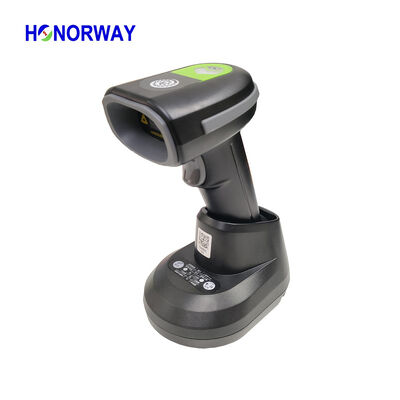

HW-3968B Wireless Bluetooth Barcode Scanner

The HW-3968B is a premium handheld Bluetooth barcode scanner engineered through multiple iterations in software, components, and battery technology. Innovations focus on battery management, fast charging, programmable shortcut keys, communication algorithms, and data transmission—solving long-standing industry pain points and setting a new benchmark for reliability and performance.

Key Advantages

Advanced Battery Management: Industry-first adoption of coulomb-counting technology, delivering milliampere-level real-time battery status with voice prompt support.
Fast Charging Capability: Supports 24V fast charging, fully charging the 2600mAh lithium-ion battery in just 2 hours, with automatic switching to USB slow charging for flexibility and safety.
Shortcut Key Design: Mode switching, language, Bluetooth connection, and upload method can all be adjusted via hardware keys—no barcode menus, software, or external apps required.
Enhanced Bluetooth Communication: Features breakpoint caching and auto-retransmission to prevent data loss in challenging environments such as elevators, warehouse blind spots, or shielded areas.
Efficient Data Upload: Paired with a dedicated data transfer tool, the scanner supports rapid batch uploads, with exported data saved as TXT files.

Technical Specifications

Image Sensor	CMOS global shutter 100fps
Resolution	752×480 pixels
Decoding Capacity	Support paper and screen barcodes, customized for OCRA, OCRB 2D: QR, PDF417, Data Matrix (normal+inversed), Aztec, Maxi code, dot code, etc. 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MS1I/MSI PLESSEY, GS1 DataBar, etc.
Precision	4mil for 1D, 6mil for 2D
Light Source	Position light-617nm Visible red LED, white LED
Scan Angle	Rotation 360°, tilt ±60°, skew ±60°
Min Contrast	20%
Scanning Speed	400 times/s
Typical DOF	Code128 10mil 18bytes paper: 80-270mm EAN13 13mil 13bytes paper: 40-300mm QR 20mil 11bytes paper: 10-230mm DM15mil 16bytes paper: 20-180mm Performance may be impacted by barcode quality and environmental conditions

Mechanical and Electrical

Interface	USB/USB COM, RS232 (wired), Bluetooth, 2.4GHz RF wireless
Transmission	70 meters (open air)
Bluetooth Mode	HID SPP BLE
Working Voltage	DC 5V±5%
Current	250mA (working), 17mA (standby)
Battery	2600mAh lithium battery
Charging Time	Base: charge time < 4H, Scanner: fast charging 24V@3A, time < 2H
Memory Size	16MB for 10Kpcs@code128
Dimensions	146.2×89.9×186.74mm
Weight	219.2g
Cable Length	1.8M
Indication	Speaker voice announcement Charging - solid red light, fully charged - red light off Dock mode: solid green light - dock connected, green light flashes briefly - code read successful Standard Bluetooth: solid blue light - Bluetooth connected, blue light flashes briefly - code read successful

Environmental Requirements

Working Temperature	-30°C to 70°C
Storage Temperature	-40°C to 80°C
Humidity	5%-95% (Non-condensing)
Light Immunity	0~100,000 Lux
Drop Test	1.2M, 6 sides, 10 times per side

Application Example

In warehouse inventory scenarios, users often rely on storage mode to batch-collect barcode data before uploading to a host system. The HW-3968B significantly reduces upload time—delivering 1,500 bytes in just 2 seconds and 86KB in 10 seconds—eliminating lengthy delays common with conventional scanners.
