| Brand Name: | HONORWAY |
| Model Number: | HW-3960B |
| MOQ: | 1 |
| Price: | $18-$25 |
| Payment Terms: | T/T |
| Supply Ability: | 20Kpcs Per month |

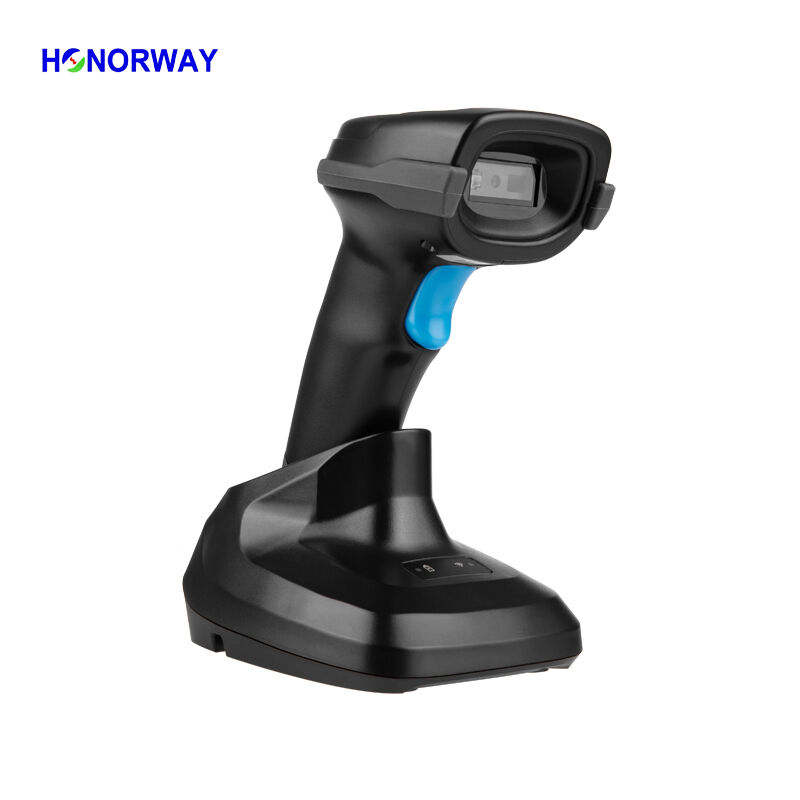

1D 2D QR Inversed Datamatrix Handy Barcode Reader Bluetooth Wireless USB Handheld Barcode Scanner with Charging Base
Product Features
HW-3960B is a lineup of handheld barcode scanners. All models boast the same scanning performance, with variations limited to other configurations—details of which are shown in the table below.Let’s start with the scanning function. Fitted with a 0.3-megapixel global exposure camera and sensor, this scanner offers top-tier reading ability for barcode scanners.
It can quickly decipher smudged, broken, or deformed barcodes. Here we touch on the barcode tolerance rate (more details in the upcoming knowledge base). Low-performance scanners can’t handle flawed barcodes, but the HW-3960B works well even with barcodes that have a 25% error rate—that’s what makes it stand out. For more great specs, check out the product manual.
Next, the differences between sub-models are listed in a table. Customers can pick the right one according to their own needs.
|
No. |
Model Number |
Interface |
Battery |
Communication |
Charging Base |
|
1 |
HW-3900 |
USB or RS232 |
/ |
Wire |
/ |
|
2 |
HW-3900W |
2200mAh |
2.4GHz wireless(USB dongle) |
|
|
|
3 |
HW-3900B |
2.4GHz wireless+Bluetooth |
|
||
|
4 |
HW-3960W |
2.4GHz wireless |
Yes |
||
|
5 |
HW-3960B |
2.4GHz wireless+Bluetooth |
Yes |
||
|
6 |
Stand |
/ |
/ |
/ |
/ |
Note: stand is optional
Technical Parameters
|
Reading performance |
Image Sensor |
CMOS global shutter 60fps |
|
Resolution |
0.3MP 640*480pixels |
|
|
Decoding capacity |
Support paper and screen barcodes |
|
|
2D: QR ,PDF417,Data Matrix(normal+inversed) Aztec Maxi code etc. |
||
|
1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2of 5,industrial 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,GS1,etc. all normal 1D |
||
|
Precision |
3mil |
|
|
Light Source |
617nm Visible red LED,white LED |
|
|
Scan Angle |
Rotation360°,tilt±60°,skew±60° |
|
|
Min Contrast |
25% |
|
|
Scanning Speed |
500 times/s |
|
|
Typical DOF |
40-100mm(4mil code39) 50-250mm(13mil EAN13) 40-300mm(20mil QR) 40-280mm(10mil PDF417) Performance may be impacted by bar code quality and environmental conditions |
|
|
Mechanical and electrical |
Interface |
USB/USB COM,RS232(wired) Bluetooth,2.4GHz RF wireless |
|
Bluetooth Mode |
HID SPP BLE |
|
|
Working Voltage |
DC 5V±5% |
|
|
Current |
200mA(working) 10mA(standby) |
|
|
Battery |
2200mAH lithium battery, working 3-7days,charge time 4-5H |
|
|
Memory Size |
16MB for 10Kpcs@code128 |
|
|
Dimensions |
170*65*100mm(scanner) 120*95*65mm(charging base) |
|
|
Weight |
400g |
|
|
Cable Length |
1.8M |
|
|
Indication |
Buzzer & LED |
|
|
Environment Request |
Working Tem |
-20~60℃ |
|
Storage Tem |
-40~85℃ |
|
|
Humidity |
5%-95%(Non-condensing) |
|
|
Light Immunity |
0~100,000Lux |
|
|
Drop Test |
1.8M |
Where It Works
The HW-3960B is a super reliable device that suits tough working scenarios.
FAQ
Is it available for OEM/ODM ?
A: Yes, OEM/ODM are available, We can provide customized service according to customer requirement.
What is the certifications you have?
A: We have ISO9001, CE,FCC,ROSH,etc.
What's the terms of shipping ?
A: Sample with international express for fast delivery. and bulk order can be by sea or by air to reduce the shipping cost
