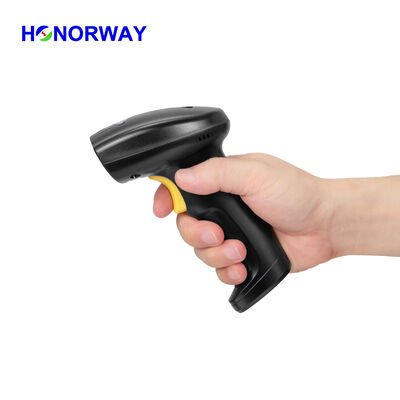

1280*800 Pixel Resolution 1D 2D DMP Bar Code Reader Bluetooth Wireless Industrial Handheld Barcode Scanner

Name: 1280*800 Pixel Resolution 1D 2D DMP Bar Code Reader Bluetooth Wireless Industrial Handheld Barcode Scanner
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-3368H
Price: 28.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-3368H
MOQ:	2
Price:	$27-30/pcs
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Features:

Support DPM Barcode,high Density Barcode

Product Name:

Industrial DPM Barcode Reader

Pixel Resolution:

1MP

Image Sensor:

9281,global Shutter

Communication:

Bluetooth+2.4G Wireless+USB

Decoding Capacity:

1D Barcode+2D QR,DM,PDF417; OCR Is Optional

Bluetooth Mode:

HID SPP BLE

Application:

Factory Parts Scan;PDF417 On Driver License; Inversed Datamatrix

Product Description

1280×800 Pixel Resolution 1D/2D DPM Bar Code Reader Bluetooth Wireless Industrial Handheld Barcode Scanner

The HW-3368H is a high-performance handheld barcode scanner engineered for the most demanding industrial DPM decoding applications. Featuring a 1280×800 pixel image sensor and supporting Bluetooth, Wi-Fi, and USB wired connections, this device delivers exceptional read reliability on ultra-small QR and Data Matrix codes directly engraved on PCBs, jigs, metal surfaces, and plastics—solving critical traceability challenges in factory environments.

Competitive Advantage: While competing models with similar specifications typically retail around $100, the HW-3368H offers premium performance at a significantly more budget-friendly price point.

Key Performance Features

Decodes miniature, low-contrast, reflective, and laser-etched DPM codes with ease—ideal for shop-floor use
Handles inverted-color QR/DM codes, reflective marks, and long high-density PDF417 barcodes on driver's licenses
Enables wireless operation with remote data transmission and onboard storage for offline logging
Powered by a 2200mAh rechargeable battery rated for 1000+ charge/discharge cycles
1280×800 high-resolution sensor allows extended working distance—eliminating need for close-contact scanning
Unbeatable value—premium performance at a fraction of the usual cost

Primary Applications

Light manufacturing assembly lines: Scan tiny engraved IDs on smartphone components and other parts for end-to-end quality tracking
Commercial applications: Reliably reads inverted DM codes on Russian cigarette packs and dense PDF417 barcodes on US/South African documents
Optional OCR add-on: Captures MRZ strings from ID cards and passports, enabling fast identity verification
