1MP Global Shutter Barcode Scanner Engine Embedded 1D 2D QR Barcode Reader Module

Name: 1MP Global Shutter Barcode Scanner Engine Embedded 1D 2D QR Barcode Reader Module
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1280D
Price: 25 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1280D
MOQ:	2
Price:	$25/pcs
Payment Terms:	T/T
Supply Ability:	20Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

1MP High Resolution Barcode Reader Module

Precision:

3mil@EAN13

View Angle:

66°(H) X50°(V)

Min Contrast:

20%

Current:

160mA(working)

Typical DOF:

10bytes QR Code(20mil)25-320mm

Interface:

TTL232,USB(KBW/COM) By 12pin FFC Flat Cable(0.5mm Pitch)

Application:

The Scene For Reading High Density Barcode/QR/PDF417

Highlight:

1MP Barcode Scanner Engine

Global Shutter Barcode Reader Module

3mil Precision QR Barcode Scanner

Product Description

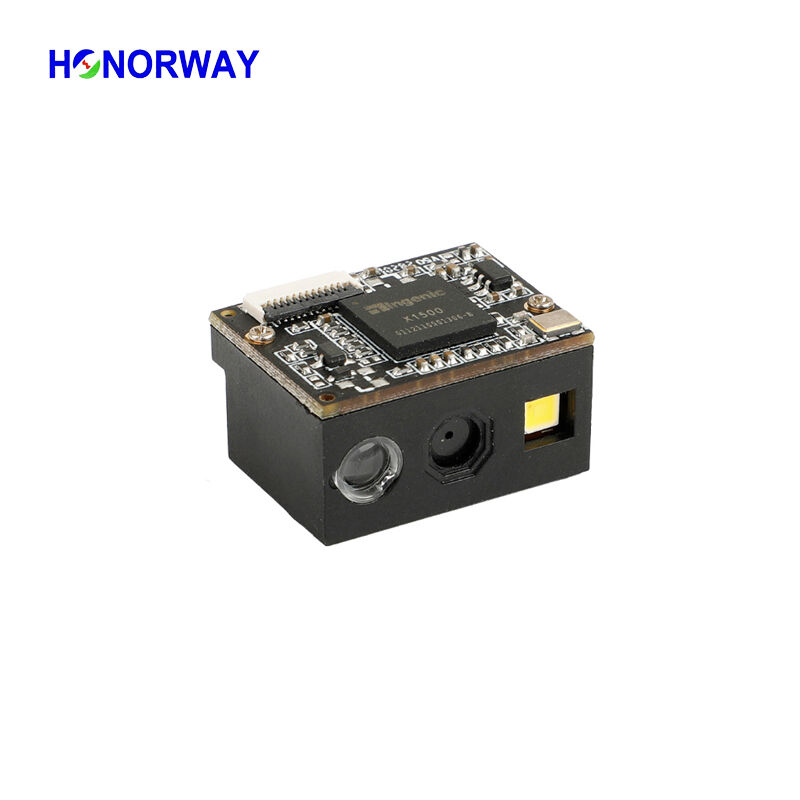

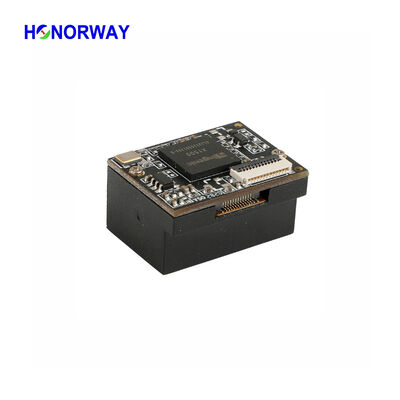

High Performance 1MP Global Shutter Barcode Scanner Engine

The HW-1280D is a next-generation embedded barcode scanner engine designed for seamless integration, delivering exceptional decoding performance for high-density 1D and 2D barcodes. Featuring a high-resolution 1280 x 800 sensor, this module enables fast and accurate reading of compact PDF417 barcodes commonly used on government-issued IDs worldwide. With a flexible reading distance of 5 to 15 cm, it supports both handheld and fixed scanning environments.

Key Advantages

Superior High-Density Scanning - Handles demanding barcodes like 2mil Code 39 and dense PDF417 with ease
Sunlight-Compatible - Performs reliably outdoors by minimizing glare and reflection from screens
Compact Design for Embedded Use - Optimized for short-distance scanning in space-constrained installations
Easy Integration - Features four mounting holes for flexible mechanical design and secure installation
Affordable & Adaptable - Combines cost efficiency with customization options for diverse project needs

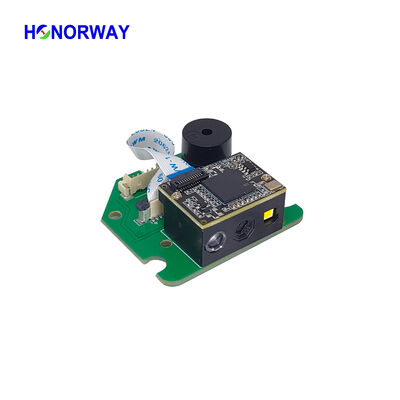

Multi-Interface Support - Works with adapter boards for TTL, RS232, USB HID, and USB COM connections

Technical Specifications

Image Sensor	CMOS
Resolution	1MP, 1200*800 pixels, 100fps
Decoding Capacity	Supports paper and screen barcodes
2D Barcode Support	QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code
1D Barcode Support	EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5
Precision	3mil
Light Source	620nm Visible Red Diode, red LED for illumination
View Angle	66°(H) * 50°(V)
Scan Angle	Rotation 360°, tilt ±65°, skew ±65°
Min Contrast	20%
Trigger Mode	Manual, Continuous, Motion sensing, Host Mode
Typical DOF	EAN13 (13mil) 50-260mm, Code 39 (5mil) 40-220mm, QR code (20mil) 25-320mm, PDF417 (6.67mil) 30-180mm
Interface	TTL232, USB (KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage	DC 3.3V
Current	160mA (working), 20mA (USB standby), 2mA (TTL standby)
Dimensions	21.6(W) * 16(D) * 12(H) mm
Weight	3.5g
Indication	LED fill light (can trigger external buzzer and LED indicator)

Ideal Use Cases

The HW-1280D offers deployment flexibility for both handheld terminals and fixed kiosks. Handheld applications benefit from adjustable reading distances to accommodate various barcode sizes, while fixed installations provide consistent, short-range reading where users simply present barcodes to the scanner. Common applications include self-service systems for ticketing, hospital self-check-in, government service centers, vending machines, DMV stations, identity verification, and industrial handheld data terminals.
