| Brand Name: | HONORWAY |
| Model Number: | HW-1266D |
| MOQ: | 2 |
| Price: | 15 |
| Payment Terms: | T/T |
| Supply Ability: | 30Kpcs per month |

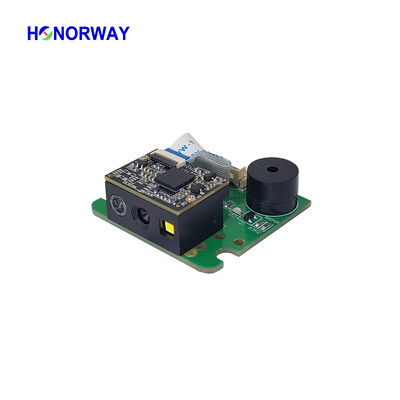

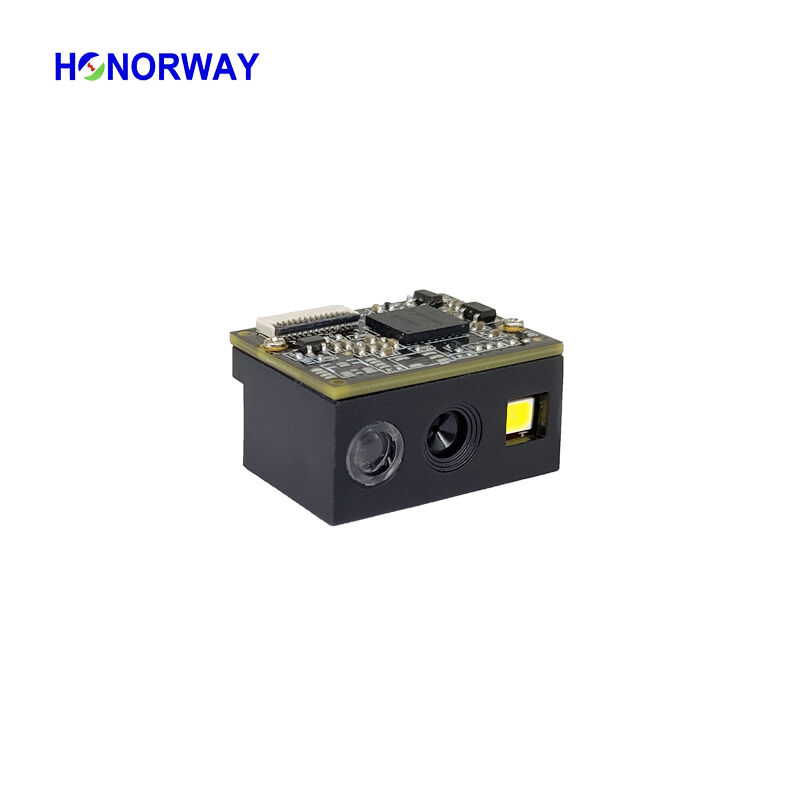

HW-1266D is a miniaturized embedded barcode engine dedicated to high-precision 1D and 2D code recognition. It integrates a 0.3MP global exposure CMOS camera with 60fps high refresh rate, ensuring responsive and reliable scanning experience for professional scenarios.
| Reading Performance | Specifications |
|---|---|
| Image Sensor | CMOS global shutter |
| Resolution | 752×480 pixels, 60fps |
| Decoding Capacity | Supports paper and screen barcodes including QR, PDF417, Data Matrix, EAN, UPC, Code 39, Code 128, and all normal 1D/2D formats |
| Precision | 3mil |
| Light Source | 620nm Visible Red Diode, white LED for illumination |
| View Angle | 66°(H) × 50°(V) |
| Scan Angle | Rotation 360°, tilt ±65°, skew ±65° |
| Min Contrast | 25% |
| Trigger Mode | Manual, Continuous, Motion sensing, Host Mode |
| Typical DOF | EAN13 (13mil) 50-260mm, Code 39 (5mil) 25-220mm, QR code (20mil) 40-320mm, PDF417 (6.67mil) 30-180mm |
| Mechanical & Electrical | Specifications |
|---|---|
| Interface | TTL232, USB (KBW/COM) by 12pin FFC flat cable (0.5mm pitch) |
| Working Voltage | DC 3.3V |
| Current | 160mA (working), 20mA (USB standby), 2mA (TTL standby) |
| Dimensions | 21.6(W) × 16(D) × 12(H) mm |
| Weight | 3.5g |
| Indication | LED fill light (can trigger external buzzer and LED indicator) |
| Environmental Requirements | Specifications |
|---|---|
| Working Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (Non-condensing) |
| Light Brightness | 0-100,000 LUX |
As a critical IoT sensing device, the HW-1266D embedded scan module is widely integrated into various equipment:
