Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine

Name: Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1266D
Price: 15 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1266D
MOQ:	2
Price:	15
Payment Terms:	T/T
Supply Ability:	30Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Anti-sunshine Barcode Reader Module

Precision:

3mil@code39

Image Sensor:

CMOS Global Shutter

Light Source:

620nm Visible Red Diode, White LED For Illumination(red Light Is Optional)

Working Mode:

Manual, Continuous, Auto Sensing, Host Mode Etc.

Compatiable OS:

Linux, Widows, Android, Mac, POS, Etc.

Indication:

Can Trigger External Buzzer And LED Indicator

Application:

Access Control,handheld IOT Device, Kiosk Etc.

Highlight:

Highly Sensitive Barcode Reader Module

Anti Sunshine Barcode Scan Engine

Embedded Barcode Reader Module

Product Description

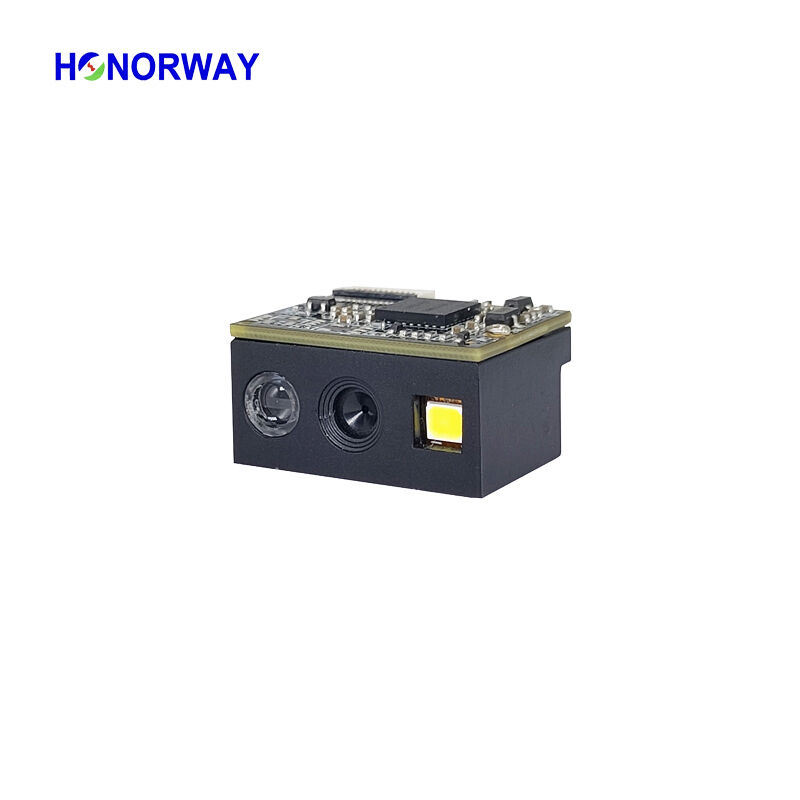

HW-1266D Highly Sensitive 1D 2D QR Barcode Reader Module

The HW-1266D is a compact embedded barcode scan engine that supports accurate decoding of both 1D and 2D barcodes. Equipped with a 0.3MP global-shutter CMOS image sensor and high-speed scanning rate of 60 frames per second, it delivers smooth and efficient scanning performance with stable hardware configuration.

Its core strength lies in the perfect combination of self-developed advanced decoding algorithms and Ingenic processor, offering strong compatibility and stability in various environments. It effectively solves the difficulty of scanning screen codes under strong sunlight reflection, and reliably reads special codes such as Datamatrix inverse codes on Russian cigarette packs and PDF417 codes on wine bottles. Supporting more than 30 languages and special characters, it is compatible with global data formats including UTF-8, GBK, and UNICODE to meet international application requirements.

Key Features

Ultra-compact size: Only 21.6(W)×16(D)×12(H) mm, ideal for most embedded integration demands
High-density barcode decoding: Capable of reading 3mil Code39, 5mil QR codes up to 1800 bytes, and other high-precision barcodes
Wide barcode compatibility: Uses imaging CMOS decoding technology to support both printed and on-screen 1D/2D barcodes
Flexible output interfaces: Supports USB, USB COM, and TTL UART via 12-pin FFC cable
Open development support: Provides complete SDK and command set for customer secondary development and customization

Technical Specifications

Reading Performance	Image Sensor: CMOS global shutter Resolution: 752×480 pixels, 60fps Decoding capacity: Support paper and screen barcodes
Supported Barcodes	2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc. 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, etc.
Precision	3mil
Light Source	620nm Visible Red Diode, white LED for illumination
View Angle	66°(H) × 50°(V)
Scan Angle	Rotation 360°, tilt ±65°, skew ±65°
Min Contrast	25%
Trigger Mode	Manual, Continuous, Motion sensing, Host Mode, etc.
Typical DOF	EAN13 (13mil) 50-260mm, Code 39 (5mil) 25-220mm, QR code (20mil) 40-320mm, PDF417 (6.67mil) 30-180mm Performance may be impacted by barcode quality and environmental conditions
Interface	TTL232, USB (KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage	DC 3.3V
Current	160mA (working), 20mA (USB standby), 2mA (TTL standby)
Dimensions	21.6(W) × 16(D) × 12(H) mm
Weight	3.5g
Indication	LED fill light (can trigger external buzzer and LED indicator)
Working Temperature	-20°C to 60°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (Non-condensing)
Light Brightness	0-100,000 LUX

Applications

As a key sensing component in the IoT ecosystem, the HW-1266D embedded scan engine is designed for device integration and widely used in various fields:

Handheld devices: Wired, wireless, and Bluetooth barcode scanners for retail, logistics, hospitals, industrial manufacturing, and warehouses
Self-service equipment: Ticket checkers, vending machines, queuing machines in hospitals and government service centers

Note: For access control systems, our modular scan engines are recommended due to wider scanning area and shorter working distance for better matching.
