OEM 1D 2D QR Barcode Scanner Engine Embedded OCR MRZ Reader Module For Passport

Name: OEM 1D 2D QR Barcode Scanner Engine Embedded OCR MRZ Reader Module For Passport
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1264N
Price: 23.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1264N
MOQ:	2
Price:	22-25 usd/pcs
Payment Terms:	T/T
Supply Ability:	10Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,FCC,ISO9001

Product Name:

Mrz Reader Module For Passport/ID Card

Pixel Resolution:

1280*720

Decoding Capacities:

MRZ String On Passport/ID Card+2D QR+1D Barcode

Scan Angle:

Rotation360°,tilt±55°,skew±55°

Typical DOF:

MRZ Code(Standard Passport) 120-220mm

Precision:

4mil@code39

Dimensions:

21.2(W)×14(D)×10.2(H)mm

Application:

Authenticator In Hotel,custom,airport,bus Station

Highlight:

OEM QR Barcode Scanner Engine

Embedded OCR MRZ Reader Module

Barcode Scanner Engine For Passport

Product Description

HW-1264N OEM Embedded OCR MRZ Reader Module

High-performance 1D/2D QR barcode scanner engine with OCR character recognition for passport and ID card applications

Product Overview

The HW-1264N is a compact scanning engine designed for applications requiring both barcode decoding and OCR character recognition. Featuring a 1MP global shutter camera operating at 100fps and a 1GHz main control chip, it delivers the processing power needed to handle complex MRZ strings found on passports and ID cards.

Key Features

Paper & Screen Reading - Decodes 1D and 2D barcodes from both printed labels and mobile device screens
MRZ Character Recognition - Reads MRZ lines from passports and ID cards with 9-20cm working distance. Supports OCR-A and OCR-B standard fonts
Cross Laser Aiming - Integrated crosshair laser for precise scanner positioning and fast targeting
Command Control - Start or stop scanning via host commands for enhanced human-machine interaction
Multiple Trigger Modes - Supports auto-sensing, continuous reading, level trigger, and command trigger modes
Customization Ready - Firmware and function customization available for OEM projects

Technical Specifications

Reading Performance	Image Sensor: CMOS Resolution: 1MP (1280×720 pixels)
Decoding Capability	Supports paper and screen barcodes; OCR A/B optional 2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc. 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, and all normal 1D codes
Precision	4mil
Light Source	620nm Visible Red Diode with red LED illumination
View Angle	45°(H) × 40°(V)
Scan Angle	Rotation 360°, tilt ±55°, skew ±55°
Minimum Contrast	25%
Trigger Modes	Manual, Continuous, Motion sensing, Host Mode
Typical Depth of Field	Code128 (5mil): 30-170mm Code 39 (4mil): 40-130mm QR code (20mil): 30-210mm PDF417 (5mil): 30-120mm MRZ code (Standard passport): 80-190mm
Interface	TTL232, USB (KBW/COM) via 12pin FFC flat cable (0.5mm pitch)
Working Voltage	DC 3.3V ±10%
Current	Max 190mA (working), ≤1mA (TTL standby)
Dimensions	21.2(W) × 14(D) × 10.2(H) mm
Weight	3.5g
Indication	LED fill light (can trigger external buzzer and LED indicator)
Working Temperature	-30°C to 70°C
Storage Temperature	-40°C to 80°C
Humidity	5% to 95% (Non-condensing)
Light Brightness	0-100,000 LUX

Performance may be impacted by barcode quality and environmental conditions

Typical Applications

Auto-Sensing Mode - Ideal for kiosks or self-service terminals. Automatically activates illumination and starts reading when documents are presented
Command Mode - Suitable for screen-based devices. Host sends commands via serial interface to trigger scanning for interactive user experiences
Continuous Mode - Designed for high-volume scanning environments. Duplicate barcode output can be filtered with configurable time intervals
Trigger Mode (Gun Style)
- Level Trigger: Scanning starts when button is pressed and stops when released
- Pulse Trigger: Press once to start, press again to stop - ideal for traditional barcode gun applications

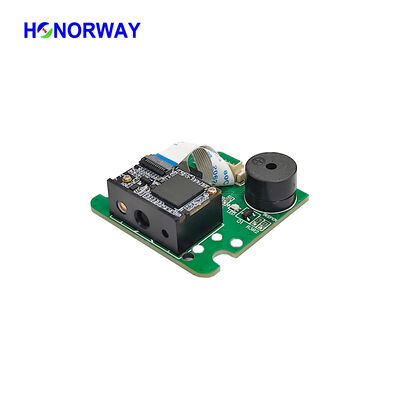

OEM 1D 2D QR Barcode Scanner Engine Embedded OCR MRZ Reader Module For Passport 0
