| Brand Name: | HONORWAY |

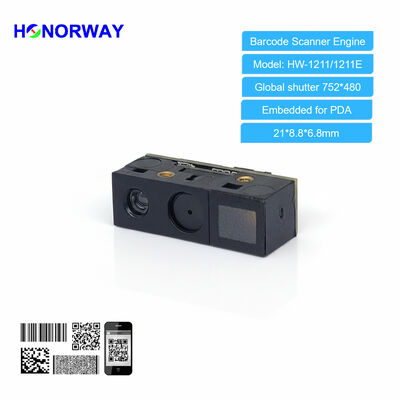

| Model Number: | HW-1211E |
| MOQ: | 1 |
| Price: | $12-14 |
| Payment Terms: | T/T |
| Supply Ability: | 20Kpcs per month |
| Parameter | Specification |
|---|---|
| Image Sensor | CMOS global shutter,120fps |
| Resolution | 752×480 pixels, 0.3MP |
| Decoding Capacity | Paper and screen barcodes 2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar Customization available for OCR-A/OCR-B |
| Precision | 3mil (1D), 5mil (2D) |
| Light Source | 620nm Visible Red Diode, white LED for illumination |
| Scan Angle | Rotation 360°, tilt ±55°, skew ±55° |
| Min Contrast | 20% |
| Trigger Mode | Manual, Continuous, Motion sensing, Host Mode |
| Typical DOF | Code128 (10mil) 50-260mm Code 39 (4mil) 50-150mm QR code (20mil) 50-260mm PDF417 (5mil) 30-120mm Performance may vary based on barcode quality and environmental conditions |
| Interface | TTL232, USB (KBW/COM) via 13pin FFC flat cable (0.3mm pitch) |
| Working Voltage | DC 3.3V ±0.3V |
| Current | Max 190mA (working), ≤10mA (TTL standby) |
| Dimensions | 21(W) × 8.8(D) × 6.8(H) mm |
| Weight | 2g |
| Indication | LED fill light (can trigger external buzzer and LED indicator) |
| Installation | 2pcs M1.6mm screws, locking depth not exceeding 1.5mm |
| Working Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 5%-95% (Non-condensing) |
| Light Brightness | 0-100,000 LUX |
