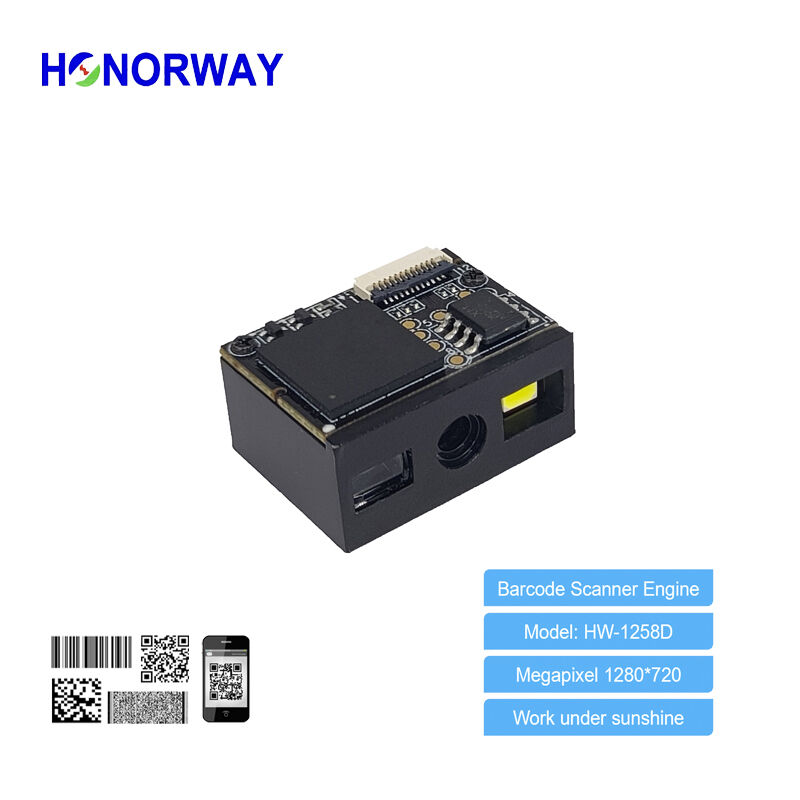

| Brand Name: | HONORWAY |
| Model Number: | HW-1258D |
| MOQ: | 1 |
| Price: | $15-20/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 20Kpcs per month |
| Image Sensor | CMOS |
|---|---|
| Resolution | 1MP, 1280×720 pixels |
| Decoding Capacity | Supports paper and screen barcodes |
| 2D Barcode Support | QR, MicroQR, PDF417, MicroPDF, DataMatrix, Aztex, Maxicode, Hanxin |
| 1D Barcode Support | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey |
| Precision | 4mil (1D); 5mil (2D) |
| Light Source | Red LED for aim, white LED for illumination |
| View Angle | 56.7° (H) × 35° (V) |
| Scan Angle | Rotation 360°, tilt ±55°, skew ±55° |
| Min Contrast | 30% |
| Scan Speed | 300 scans/second |
| Trigger Mode | Continuous, Motion sensing, Host Mode |
| Typical Depth of Field | EAN13 (13mil) 40-300mm, Code 39 (13mil) 40-350mm, QR code (15mil) 40-260mm, PDF417 (6.67mil) 40-200mm, QR code (WeChat payment) 40-600mm |
| Interface | USB, USB COM, TTL |
|---|---|
| Working Voltage | DC 3.3V ±10% |
| Current | Max 350mA (working), 200mA (typical) |
| Dimensions | 21.6mm (W) × 16.3mm (D) × 11.7mm (H) |
| Weight | 3g |
| Working Temperature | -20°C to 50°C |
|---|---|
| Storage Temperature | -40°C to 60°C |
| Humidity | 5% to 95% (Non-condensing) |
| Light Brightness | 0-100,000 LUX |
| FFC Cable | 12pin FFC cable |
|---|---|
| Test Board | With button, buzzer, LED, USB/TTL/RS232 |
| Interface Cable | USB/TTL/RS232 cable to connect test board with host |
