Wireless Bluetooth QR Payment Reader Plug And Play 2D QR Code Scan For E Wallet

Name: Wireless Bluetooth QR Payment Reader Plug And Play 2D QR Code Scan For E Wallet
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-5300B
Price: 14.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-5300B
MOQ:	1
Price:	$13-16/pcs
Payment Terms:	T/T
Supply Ability:	30Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS ISO9001

Product Name:

Dispaly QR Code Reader

Scan Element:

CMOS

Customization:

Casing Color, Logo,cable,color Box Etc.

Indication:

Buzzer & LED

Bluetooth Mode:

HID And BLE

Dimensions:

L118*W85*H83mm

Feature:

Support BT And USB Plug And Play

Usage:

E-wallet QR Payment

Packaging Details:

Paper Box

Highlight:

Wireless Bluetooth QR Payment Reader

Plug and Play QR Code Scanner

CMOS Sensor QR Payment Reader

Product Description

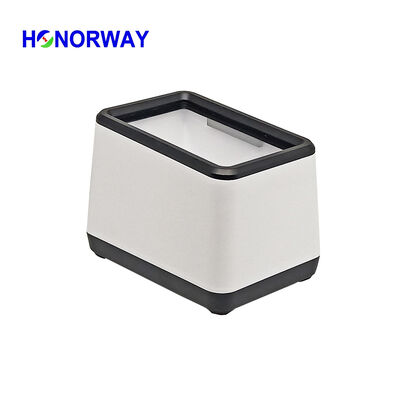

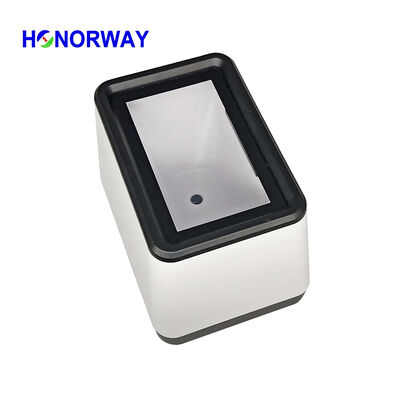

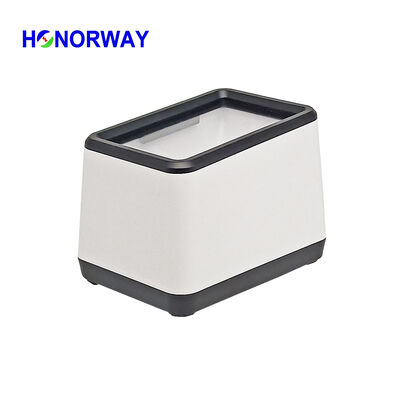

Tablet 2D QR Code Scan Wireless Bluetooth QR Payment Reader

The HW-5300B is a desktop QR Payment Scanner designed to work with POS machines for mobile QR code payment processing. Featuring Bluetooth communication (HID/BLE mode optional) and USB plug-and-play connectivity, this scanner requires no driver installation. This payment method has become widely adopted across various retail and service environments.

Key Features

Specifically designed for scanning mobile QR codes in payment applications
Dual connectivity: Bluetooth wireless communication and USB wired connection
Sleek white design with compact dimensions for space-efficient placement on cash registers
Cost-effective solution compared to traditional desktop barcode scanners
Compatible with Windows, Android, Mac, and other operating systems
Customization options available for shell color, logo, cable, labeling, and packaging

Technical Specifications

Reading Performance

Image Sensor	CMOS
Resolution	0.3MP (640×480 pixels)
Decoding Capacity	Supports paper and screen barcodes 2D: QR, PDF417, Data Matrix, etc. 1D: Code128, EAN-8, EAN-13, Interleaved 2 of 5, UPC-A, Code39, UPC-E, etc.
Precision	8mil
Light Source	White LED
Scan Angle	Rotation 360°, tilt ±45°, skew ±45°
Min Contrast	30%
Scanning Speed	200 times/second
Typical DOF	40-150mm (15mil Code128) 30-180mm (20mil Screen QR) 50-90mm (13mil PDF417) Performance may vary based on barcode quality and environmental conditions

Mechanical & Electrical

Interface	USB (charge/data), Bluetooth (USB power)
Working Voltage	DC 5V±5%
Current	260mA (Max), 120mA (working), 2mA (standby)
Dimensions	L118 × W85 × H83mm
Weight	200g
Cable Length	1.5 Meters
Indication	Buzzer & LED

Environmental Requirements

Working Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (Non-condensing)
Light Immunity	0 to 10,000 Lux
Drop Test	1.5M

Applications

The HW-5300 is ideal for mobile QR code payment collection across diverse environments. Its versatile design makes it suitable for:

Supermarkets and grocery stores
Restaurants and food service establishments
Hospital fee payment systems
Social security contribution processing
Gym member point recording
Hotel front desk operations
Campus cafeterias
Conference sign-in systems
Library management

This scanner provides comprehensive mobile QR code scanning capabilities for virtually any application requiring efficient payment processing.
