USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier

Name: USB Plug And Play Screen QR Code Scanner Handsfree Automatical Reading For POS Cashier
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-5300
Price: 9.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-5300
MOQ:	1
Price:	$8-10/pcs
Payment Terms:	T/T
Supply Ability:	30Kpcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

QR Code Reader

Resolution:

0.3MP,640*480 Pixels

Scan Type:

Hands Free,auto Scan

Interface:

USB Plug And Play

Shell Color:

White, Can Be Customized

Materials:

PC Plastic

Feature:

Good Cost-perform

Appilcation:

Scan QR Code On Smart Phone For Payment

Packaging Details:

Paper box

Highlight:

QR Code Scanner Handsfree

Plug And Play Screen QR Code Scanner

Product Description

Screen QR Code Scanner Handsfree Automatical Reading QR Payment Reader For POS Cashier

Product Introduction

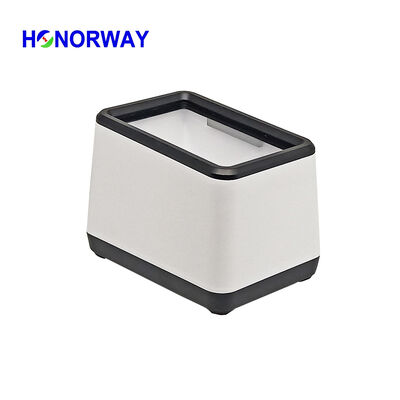

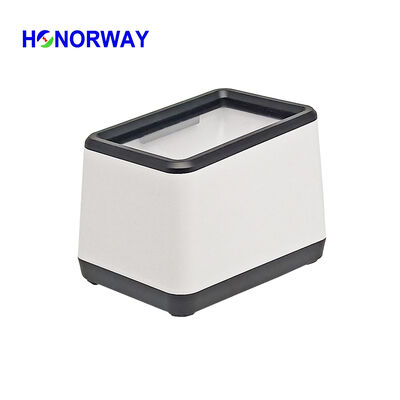

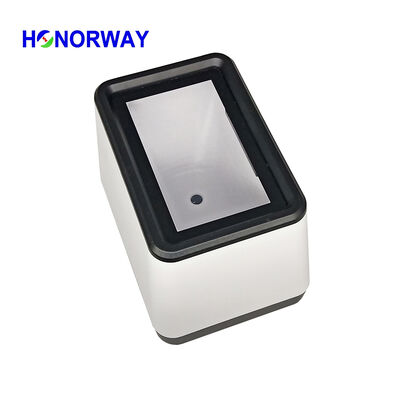

The HW-5300 is a desktop QR Payment Reader, primarily designed to connect with POS terminals for scanning mobile QR codes to process payments. Equipped with a USB interface, it supports plug-and-play functionality, eliminating the need for any driver installation. In China, this payment method has been widely adopted across supermarkets, grocery stores, restaurants and other scenarios.Key features of this product are as follows:

Specialized in scanning mobile QR codes for payment scenarios
Boasting a sleek white exterior and compact size, it looks elegant on the checkout counter without occupying excessive space
Cost-effective advantage: it is significantly cheaper than traditional desktop barcode scanners
Compatible with multiple operating systems including Windows, Android, Mac and more
Offers customizable services such as shell color, logo, cable, label, model number and packaging box

Parameters List

Reading performance	Image Sensor	CMOS
	Resolution	0.3MP 640*480pixels
	Decoding capacity	Support paper and screen barcodes
		2D: QR ,PDF417,Data Matrix etc.
		1D: Code128, EAN-8, EAN-13,Interleaved 2 of 5,UPC-A, Code39,UPC-E0,UPC E1 etc.
	Precision	8mil
	Light Source	White LED
	Scan Angle	Rotation360°,tilt±45°,skew±45°
	Min Contrast	30%
	Scanning Speed	200 times/s
	Typical DOF	40-150mm(15mil code128) 30-180mm(20mil screenQR) 50-90mm(13mil PDF417) Performance may be impacted by bar code quality and environmental conditions
Mechanical and electrical	Interface	USB HID
	Working Voltage	DC 5V
	Current	260mA(Max) 120mA(working) 2mA(standby)
	Dimensions	L118W85H83mm
	Weight	200g
	Cable Length	1.5Meters
	Indication	Buzzer & LED
Environment Request	Working Tem	-20~50℃
	Storage Tem	-40~70℃
	Humidity	5%-95%(Non-condensing)
	Light Immunity	0~10,000Lux
	Drop Test	1.5M

Application Scenarios

Leveraging its distinctive features, the HW-5300 is mainly used for mobile QR code payment collection. It is applicable to a broad spectrum of scenarios including supermarkets, grocery stores, restaurants, hospital bill payment, social security payment, gym membership point accumulation, hotel front desks, school canteens, meeting check-ins, libraries and beyond. In short, it is suitable for all occasions that require mobile QR code scanning, fully demonstrating its versatility.
