| Brand Name: | HONORWAY |
| Model Number: | HW-1870R |
| MOQ: | 1 |
| Price: | $12-$15/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 30kpcs per month |

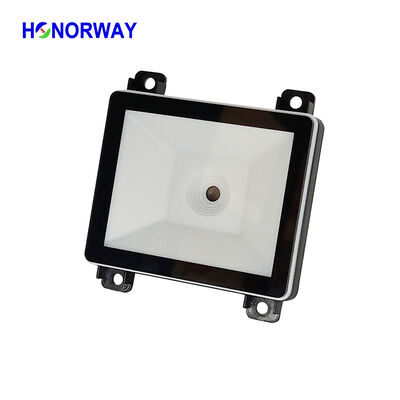

Wide Angle Close Reading Range 1D 2D barcode scanner module for kiosk access control
Product Presentation
The HW-1870R is a compact embedded barcode scanner module designed for integration into self-service equipment. Functioning as a foundational sensing device within the Internet of Things, it serves as a crucial "window" connecting the host system to the external environment. It boasts excellent compatibility with major operating systems including Windows, Android, Apple, and Linux. Developers can efficiently control this barcode reader module by calling functions from its provided SDK.Beyond core functionalities—such as decoding 1D/2D barcodes, supporting digital screen codes, and outputting data via USB or serial interface—the following key features are highlighted:
1. Ultra-Close-Range Reading: Equipped with a wide-angle camera, the HW-1870R enables "zero-distance scanning." This allows users to place a barcode directly against the module's acrylic cover without needing to find a specific focal distance. This convenience of pressing the code onto the reader for instant capture has successfully addressed a common customer requirement in various projects.
2. Flexible Reading Angles: The wide-angle camera eliminates the need for precise alignment with the module's center. It can successfully read barcodes even with positional offsets or angular tilts, supporting a maximum skew angle of up to 65 degrees.
3. Motion Tolerance: While not a global shutter product, the HW-1870R offers a standard motion tolerance of 50-60 cm/second. Although unsuitable for high-speed applications like conveyor belts, this capability enhances responsiveness in general use. It allows scanning to complete during the act of presenting the barcode to the window, delivering a swift and agile user experience.
Technical Specification
|
Reading performance |
Image Sensor | CMOS |
| Exposure | Roller shutter | |
| Resolution | 0.3MP 640*480pixels | |
| Decoding capacity | Support paper and screen barcodes | |
| 2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN etc. | ||
|
1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8,CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP etc. all normal 1D |
||
| Precision | 4mil | |
| Light Source | White LED(630nm±10nm) | |
| View Angle | 76.7°(H) x53.4°(V) | |
| Scan Angle | Rotation360°,tilt±65°,skew±65° | |
| Min Contrast | 20% | |
| Motion tolerance | 50cm/s @EAN13 10mil | |
| Typical DOF |
0-100mm(10mil EAN13) 0-150mm(10mil code39) 0-110mm(5mil UPCA) 0-120mm(10mil UPCA) 0-200mm(20mil QR) 0-80mm(10mil QR) 0-160mm(10mil PDF417) 0-70mm(10mil Data Matrix) Performance may be impacted by bar code quality and environmental conditions |
|
| Mechanical and electrical | Interface | USB(HID, COM),TTL232,RS232(optional) |
| Working Voltage | DC 5V±5% | |
| Current | 150mA(Max) 90mA(working) 1mA(standby) | |
| Dimensions | 65*61*29mm | |
| Weight | 35g(without cable) | |
| Indication | Buzzer & LED | |
| Environment Request | Working Tem | -30~60℃ |
| Storage Tem | -40~70℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light Immunity | 0~100,000Lux | |
| Drop Test | 1.8M(6ft) |
Application Scenarios
This type of barcode scanner module is suitable for integration into both fixed and mobile devices. Fixed applications include self-service kiosks, public transport ticket validators, and access control systems. Mobile applications encompass handheld terminals and portable POS machines. Notable success cases include: a multi-year project for Korean self-service machines, supplying approximately 10K units annually for three years; a safe cabinet project in South Africa, currently entering mass production; and its adoption by numerous access control clients for scanning visitor QR codes.
FAQ
1. How can you guarantee the quality?
A: We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.
2. what is your Minimum order quantity?
A: For the Standard products. we always have stock. so we have no limit for MOQ. 1 pcs for test is accept
3. Do you offer customized service?
A: Sure we do. This is our advantages. We are flexible on providing customized service from hardware design to software information.
