| Brand Name: | HONORWAY |
| Model Number: | HW-1930 |
| MOQ: | 2 |
| Price: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs/month |

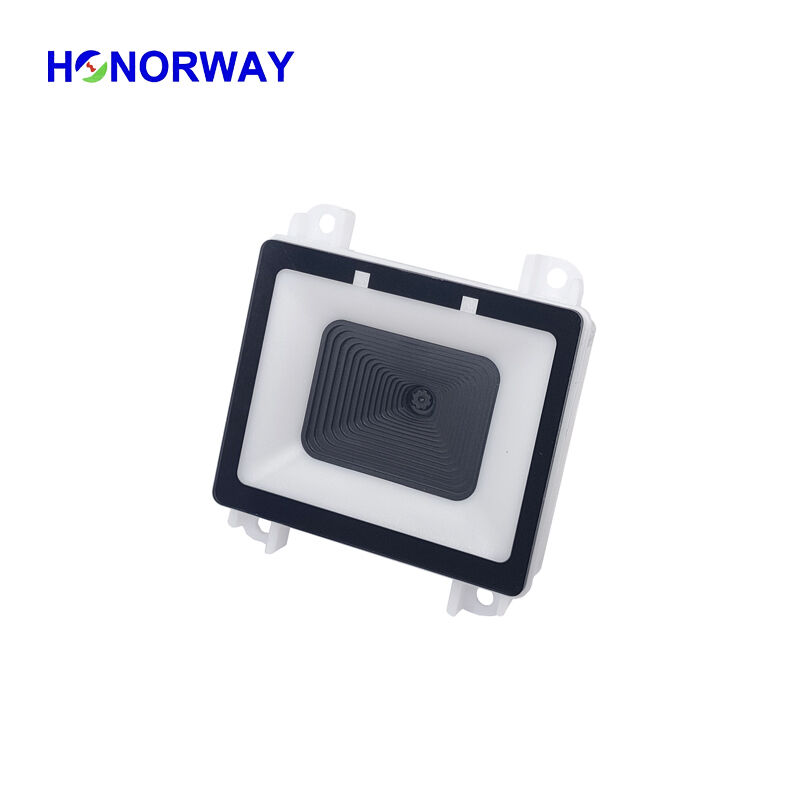

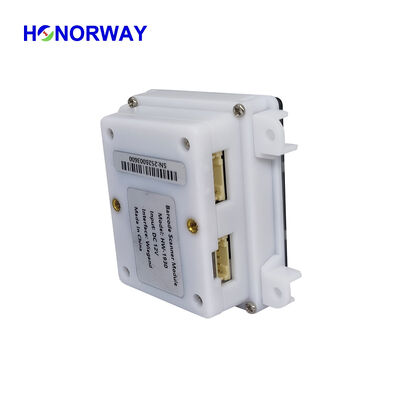

High-performance embedded barcode scanner module with Wiegand and RS485 interfaces, specifically designed for turnstile and access control applications.
The HW-1930 is a high-performance embedded barcode scanner module featuring a 0.3MP global shutter sensor and 1GHz Ingenic processor, delivering ultra-fast read speeds at 120fps. Engineered for demanding environments with anti-glare technology and dust protection for reliable operation.
| Image Sensor | CMOS |
| Exposure | Global shutter |
| Resolution | 640×480 pixels at 120fps |
| Decoding Capacity | Supports paper and screen barcodes |
| 2D Codes | QR Code, Data Matrix, PDF417, Hanxin code, Dot code, etc. |
| 1D Codes | UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI Plessey, GS1 DataBar, and all normal 1D codes |
| Precision | 4mil |
| Light Source | LED (630nm±10nm) |
| View Angle | 61°(H) × 48°(V) |
| Scan Angle | Rotation 360°, tilt ±60°, skew ±60° |
| Minimum Contrast | 25% |
| IR Sensing | Supported |
| Typical Depth of Field | 0-130mm (5mil Code39), 30-300mm (20mil Code39), 0-140mm (5mil Code128), 10-260mm (100% UPC-A), 0-190mm (20mil QR), 0-90mm (5mil PDF417), 0-80mm (10mil Data Matrix) |
| Performance may be impacted by barcode quality and environmental conditions | |
| Interface | USB (HID, COM), TTL232, RS232, Wiegand, RS485 (optional) |
| Working Voltage | 3~3.6V or 3.6~16V, standard 5VDC |
| Current | <200mA (3.3V input), <150mA (5V input), <10mA (standby) |
| Dimensions | 65×61×28mm |
| Weight | 30g (without cable) |
| Indication | Buzzer & LED |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 5% to 95% (non-condensing) |
| Light Immunity | 0 to 100,000 Lux |
| Drop Test | 1.8M (6ft) |
Deployed in mission-critical infrastructure such as the Ho Chi Minh City Metro Line 1 in Vietnam, the HW-1930 has delivered stable, uninterrupted performance since 2023. In access control systems, it is widely configured with QR + RFID, 12V power, and Wiegand interface to meet stringent security and access management requirements.
