HW-1280M-W 1280*800 Pixel Resolution Closed DOF OCR Mrz OEM Barcode Scanner Engine for ID Cards&Visa Card&Passport

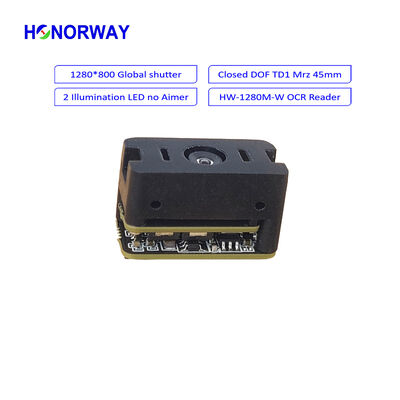

The HW-1280M-W is a compact 2D scan engine designed for OEM devices requiring both standard barcode and machine-readable zone (MRZ) reading capabilities. Powered by an Ingenic 1.2 GHz processor, 1 MP global-shutter CMOS sensor, and 120 fps capture, this module combines clear imaging with fast processing. The in-house decoding algorithm, refined over more than ten years of real-world projects, delivers dependable reading performance as a practical alternative to premium modules like the EM3088-W.

This engine reads 1D and 2D barcodes and supports ICAO 9303 TD1/TD2/TD3 MRZ formats. For TD1 ID cards and similar documents, the minimum MRZ reading distance can be as close as 40 mm; for TD3 passports, the minimum distance is 70 mm, making it ideal for projects requiring close-range MRZ capture.

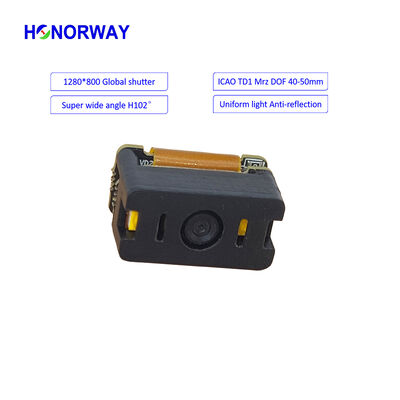

• Ultra-wide FOV: 102° horizontal and 74° vertical lens provides excellent near-field reading for extended-length barcodes and MRZ data
• ICAO and OCR Compliance: Supports TD1/TD2/TD3 documents in OCR-A/OCR-B fonts, plus printed and on-screen 1D barcodes and 2D QR codes
• Strong Decoding: 1280×800 megapixel imaging captures larger, sharper images, handling damaged codes, long high-density codes, and reflective barcodes

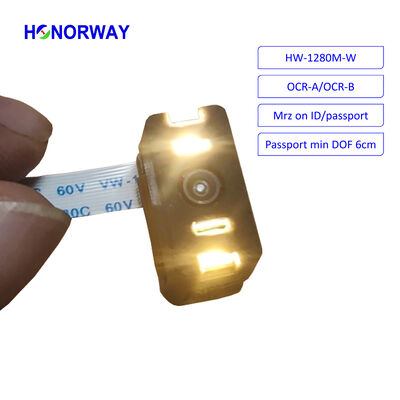

• Even Illumination: Two warm-yellow fill lights provide smooth, uniform illumination with grille structure to reduce hotspots and improve close-range uniformity
• Customizable Motion Tolerance: With 120 fps capture, achieves 2 m/s motion tolerance for barcodes moving at 2 meters per second

• Handheld ID Terminal: ID card is inserted with scan engine positioned 45 mm away at 86° angle to MRZ. After scan command, module decodes and sends data via TTL for host processing
• Self-service Kiosk: Integrated with ID placement area 45 mm from engine. Users place ID card in guided area, module reads MRZ and uploads data to kiosk mainboard
