Barcode Scanner Engine
Created with Pixso.

1280*800 Pixel Resolution Long Decoding Distance Imaging CMOS 2D Barcode Scanner Engine with Global Shutter Sensor

1280*800 Pixel Resolution Long Decoding Distance Imaging CMOS 2D Barcode Scanner Engine with Global Shutter Sensor

1280*800 Pixel Resolution Long Decoding Distance Imaging CMOS 2D Barcode Scanner Engine with Global Shutter Sensor

Brand Name: HONORWAY
Model Number: HW-1266L
MOQ: 2
Price: $19-22/pcs
Payment Terms: T/T
Supply Ability: 10Kpcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ROHS FCC ISO9001
Product Name:
Megapixel Long Range Barcode Reader Module
Sensor:
CMOS 120FPS
Pixels:
1280*800
Scan Angle:
Rotation 360°，tilt 45°，pitch 40°
Reading Distance:
600mm For QR(19mil,1cm,12bytes) On Label
Feature:
Long DOF 1.2m For QR(3cm,wechat/alipay) On Screen
Working Voltage:
3-16V DC Optional
Application:
Industrial, Commercial
Highlight:

1280x800 pixel barcode scanner engine

,

long decoding distance 2D scanner

,

CMOS barcode scanner with global shutter

Product Description
HW-1266L Embedded 2D Scan Engine: 1280×800 Pixel Resolution with Long Decoding Distance
The HW-1266L is a high-performance embedded 2D barcode scanner engine designed for long-range QR capture in kiosks, smart terminals, and industrial applications. Featuring a global shutter CMOS sensor and advanced imaging technology, it delivers reliable 1D and 2D code reading from both printed labels and mobile displays.
Key Performance Features
Extended Reading Range: Paper barcodes detectable from up to 65 cm, with mobile screen QR codes readable from up to 1.2 meters distance.
  • High Resolution Imaging: 1280×800 pixel CMOS sensor with global shutter technology
  • Narrow Field of View: 27° horizontal × 17° vertical for concentrated code capture
  • Automatic Detection: Sensitive imaging automatically senses barcodes in its field
  • Flexible Power Options: 3V to 16V DC supply with 3.3V option available
  • Multiple Interfaces: USB or serial TTL232 output via 12-contact FFC
Technical Specifications
Sensor Type OV035 Global Shutter CMOS
Resolution 1280 × 800 pixels
Field of View 27° (H) × 17° (V)
Power Supply 3V - 16V DC
Data Interfaces USB, Serial TTL232
Supported Codes All major 1D and 2D symbologies
Application Areas
Ideal for toll booths, parcel lockers, parking barriers, smart factory stations, traceability systems, conveyor scanning, access gates, and production line applications where reliable long-range barcode reading is essential.

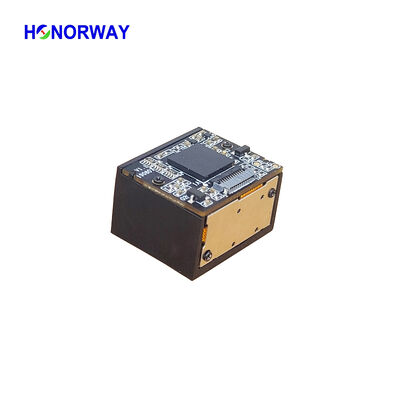

HW-1266L Embedded 2D Barcode Scanner Engine - Compact design for OEM integration
