HW-1266L Customized Long Range DOF QR Code Reader OEM 3-16V Wide Range Power 1D 2D Barcode Scanner Engine

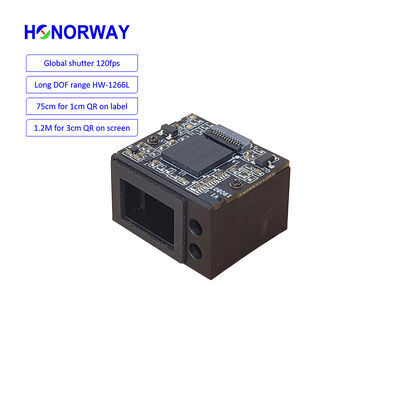

HW-1266L: Long-Range 2D Scan Engine for Embedded Barcode Reading

The HW-1266L is a compact 2D scan engine designed for OEM devices that need fast, reliable barcode capture from paper and digital screens. Whether you are building a parking kiosk, logistics cabinet, smart locker, or factory traceability terminal, this module delivers long-distance QR reading without a large optical footprint.

• Long-range reading capability with 1280×800 lens and OV035 sensor combination
• 27°(H) × 17°(V) narrow camera angle for concentrated optical path and extended reading distance
• High sensor sensitivity for automatic hands-free detection up to 65 cm for paper barcodes
• Maximum DOF of 65 cm for 10 mm QR codes on label paper
• Up to 1.2 m maximum DOF for 30 mm QR codes on smartphone screens
• Wide 3-16V DC power input for flexible integration into various systems
• Compact dimensions 21.8 × 19.2 × 14.2 mm, weighing approximately 15 g
• Multiple interface options including USB or UART/TTL232 via 12-pin FFC flat cable
• Support for 1D/2D paper and screen barcodes with global shutter technology

The module's sensitive sensor enables automatic detection of barcodes, making it ideal for mobile payment, access control, and self-service terminal applications. The wide voltage input range simplifies integration into kiosks, industrial panels, and vehicle-mounted systems where only 5V, 12V, or other DC rails are available.
