1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter

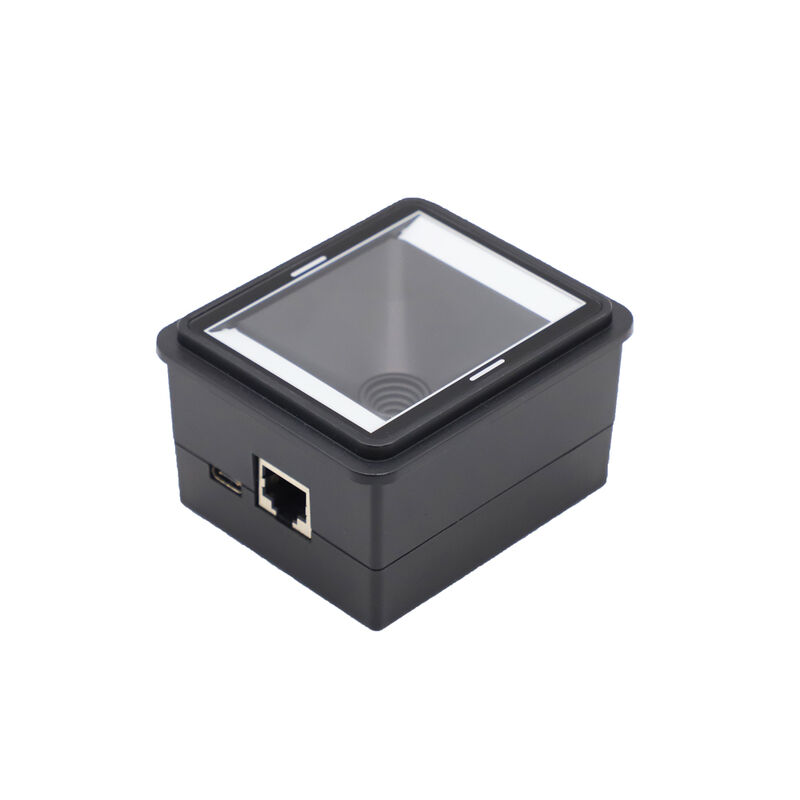

HW-1851 - High-Resolution 1MP Embedded 2D Barcode Scanner with Global Shutter

The HW-1851 is a professional-grade embedded barcode scanner module built around a 1MP global shutter CMOS sensor (1280*800 pixels) and a 32-bit 1GHz CPU. It delivers ultra-fast, precise decoding of 1D/2D barcodes from both paper labels and electronic screens, with a minimum resolution of 3mil for 1D codes - ideal for high-density applications.

• 1MP Global Shutter Sensor - 1280*800 resolution, 120fps capture eliminates motion blur for moving barcodes.
• High-Speed Decoding - 32-bit 1GHz processor ensures instantaneous read response.
• Paper & Screen Reading - Reliably decodes QR, PDF417, Data Matrix, Aztec, Hanxin, and all standard 1D symbologies (EAN/UPC, Code128, Code39, Interleaved 2 of 5, Codabar, etc.).
• Exceptional Sensitivity - Extremely low light contrast requirement (20%) and white LED illumination (6500K) for challenging environments.
• Multiple Trigger Modes - Manual, auto-sensing, continuous, and host mode for flexible integration.
• Dual Interface Options - RJ45 connector (USB D+/D-, TTL TX/RX, trigger, reset) and standard USB-C port (4.5-6.5VDC input).
• Customizable Extras - Optional 13.56MHz NFC (Mifare/ISO14443) and OCR-A/B MRZ reading.

• Public transport: bus ticket validators, turnstiles
• Unattended vending machines and kiosks
• Access control and time attendance terminals
• Industrial production line data capture
