Mini Dimensions Embedded 2D Barcode Scanner Module Anti Glare Sunshine Readable

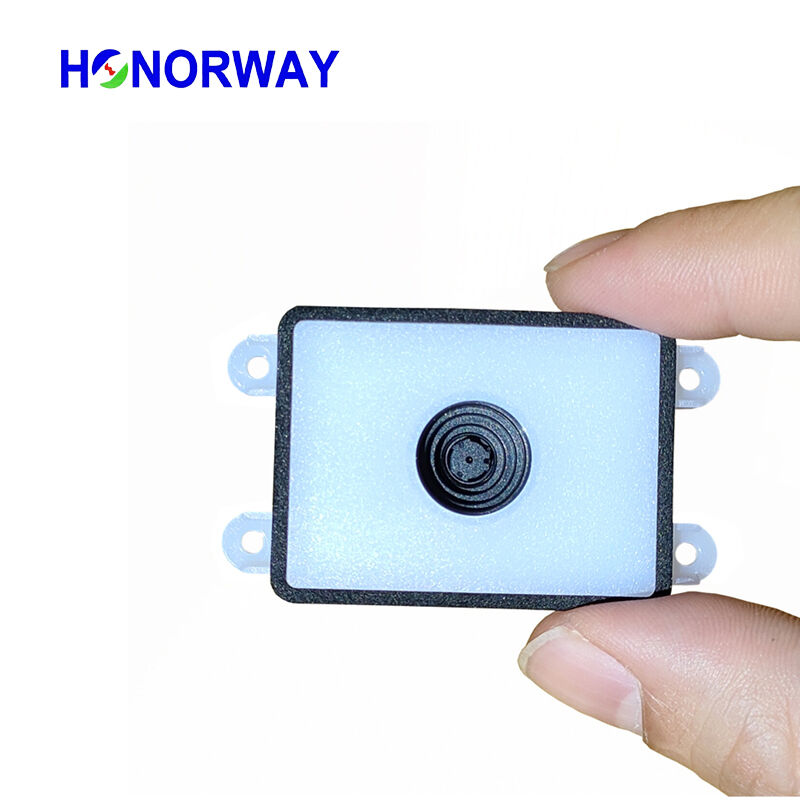

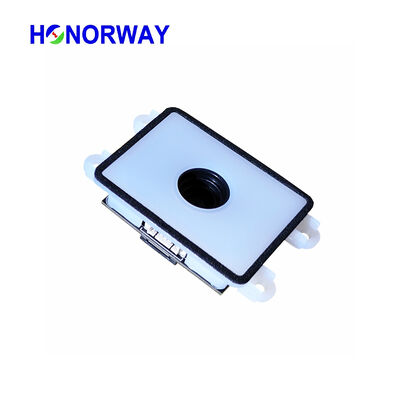

Designed for OEM integrators, the HW-1560g is a miniature embedded barcode scanning module that excels at reading 1D and 2D codes from both paper and mobile screens. Its global shutter sensor and anti‑glare optics ensure reliable performance even under direct sunlight, making it ideal for bus ticket validators, outdoor vending machines, and self‑service kiosks.

• All‑in‑One Scanning - Decodes all common 1D (UPC/EAN/Code128/Code39 etc.) and 2D codes (QR, PDF417, Data Matrix, Aztec, Hanxin) from paper or LCD screens.
• Built for Harsh Light - Anti‑sunshine technology allows operation under 100,000 Lux without missing a scan.
• Fast & Accurate - 1GHz CPU + global shutter captures moving codes at up to 4mil resolution with minimal motion blur.
• Plug‑and‑Play Interfaces - Choose RS232 (DB9), USB (HID/COM), or TTL‑232; default cable options include USB‑A, DB9+USB‑A, or open wire.
• Simple Integration - Large window, small housing (56×33×14mm, 15g), and detailed reference circuits for LED and buzzer drive.
• Flexible Operation Modes - Manual trigger, auto‑sensing, continuous scan, or host‑controlled.

The module provides dedicated pins for reset, trigger, buzzer control (PWM/level), and LED indicator (active low). Reference drive circuits are included to simplify hardware design. With USB or serial output, the HW-1560g works seamlessly with Windows, Linux, and Android hosts.
