Embedded 2D Barcode Scan Module QR Code Reader Module For IOT Machine

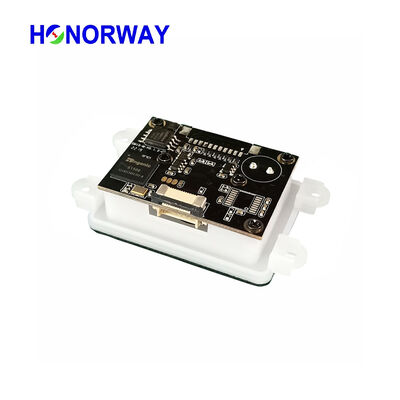

The HW-1560g is a compact embedded 2D barcode scanner module designed for seamless integration into kiosks, ticket validators, outdoor vending machines, and tablet-based systems. Featuring a global shutter CMOS sensor (752×480 pixels) and a 32‑bit high‑performance CPU running at 1GHz, it delivers fast, accurate decoding of both paper and screen‑based barcodes down to 4mil resolution.

• Global Shutter Sensor - Eliminates motion blur, ensuring reliable capture of fast‑moving barcodes.
• Dual Media Support - Reads 1D/2D barcodes from paper labels and electronic screens (QR, PDF417, Data Matrix, UPC/EAN, Code128, etc.).
• Sunlight Readable - Anti‑glare design allows direct operation under bright sunlight without performance loss.
• Flexible Interfaces - Supports RS232 (DB9), USB (HID / virtual COM), and TTL‑232 for broad system compatibility.
• Multiple Trigger Modes - Manual, auto‑sensing, continuous, and host mode for diverse application needs.

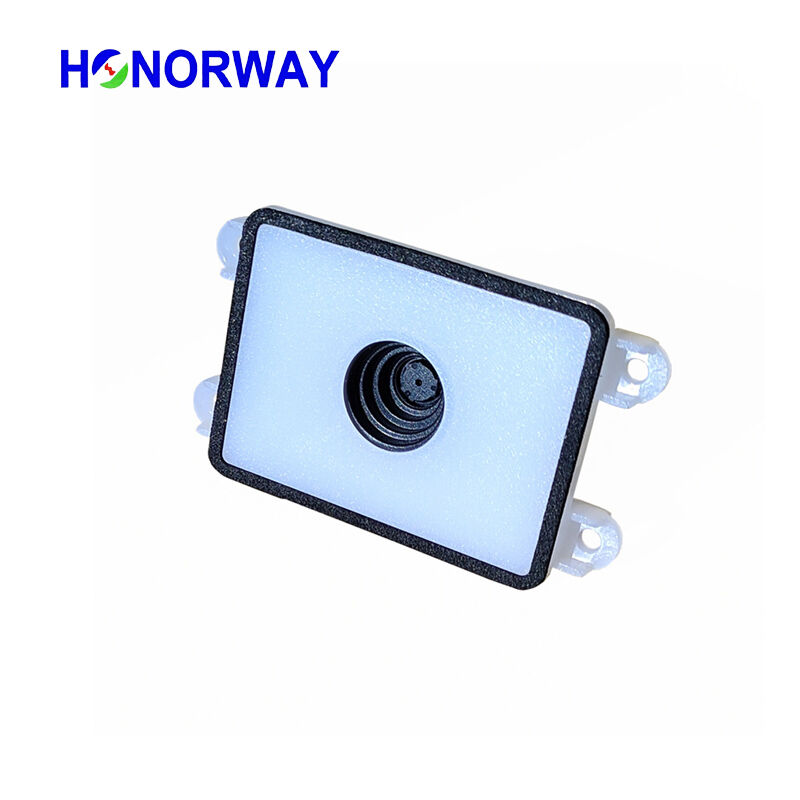

• Compact & Easy to Install - Large scan window with small footprint (56×33×14mm); weight only 15g.
• Robust Indication - Buzzer and configurable LED_C output for successful decode feedback.

• Public transport: bus ticket validators, subway gates
• Outdoor vending machines and self‑service kiosks
• Tablet‑integrated POS and inventory terminals
• Industrial production lines and logistics sorting

• Resolution: 0.3MP (752×480) global shutter
• Decoding precision: 4mil
• Field of view: 76.7° (H) x 53.4° (V)
• Typical DOF: 15‑150mm (10mil Code39), 15‑150mm (15mil QR)
• Operating voltage: DC 5V; current: 250mA max, 100mA standby, 1mA sleep
• Temperature range: -30℃ to 65℃ (operating), -40℃ to 70℃ (storage)
• ESD and drop tested: 1.3m drop resistance
