13.56MHz 125KHz EM Card 2D QR RFID Reader Mifare Card Ntag With Wiegand USB RS485

Name: 13.56MHz 125KHz EM Card 2D QR RFID Reader Mifare Card Ntag With Wiegand USB RS485
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1823
Price: 19.00 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1823
MOQ:	2
Price:	$18-20/pcs
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Wall Mounted QR RFID Reader

Reading Capacity:

Barcode+QR+RFID Card

Working Voltage:

5-12V DC

Decoding Engine:

Camera For Barcode, Antenna For Rfid Card

Supported Card:

Mifare, NFC Tag, E-NFC(smartphone)

Dimensions:

86mm×86mm×42mm

Communication Methods:

USB,USB COM,TTL,RS232,RS485,Wiegand

Applications:

Office Building Visitor Management

Highlight:

2D QR RFID Reader

Access Control QR RFID Reader

Auto Sense QR RFID Reader

Product Description

13.56MHz Mifare Card Ntag 125KHz EM Card 2D QR RFID Reader with Wiegand USB RS485 for Access Control System

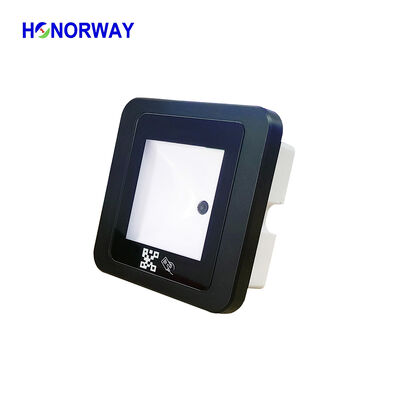

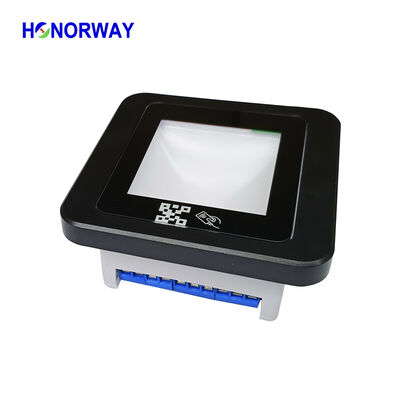

HW-1823 2D QR & RFID Reader - All-in-One Access Control Solution

HW-1823 is an intelligent 2-in-1 reader that integrates QR code scanning and RFID card reading. It is widely used in office buildings, community access control, scenic spot ticketing, government service centers, and intelligent turnstiles. With a standard 86-box industrial design, it delivers strong compatibility and supports Wiegand, USB, RS232, RS485 communication for seamless connection with various access controllers, helping traditional card systems achieve intelligent upgrade.

Key Features

Dual-mode Identification: Supports EM card, Mifare card, 1D/2D QR code reading
Fast Recognition: QR code reading distance 0-20cm, speed <200ms; RFID reading distance 3-6cm
Auto-sense Scanning: Automatic induction with buzzer prompt for easier operation
Multiple Interfaces: Wiegand, USB, RS232, RS485 to fit diverse integration needs
Industrial-grade Build: PC + tempered glass, operating temperature -20°C~70°C for harsh environments
Easy Reset: Rear reset hole supports one-key factory restore

Applications

Office building visitor management
Community access control upgrade
Scenic spot ticketing & personnel management
Government hall channel control
Smart home & turnstile matching
