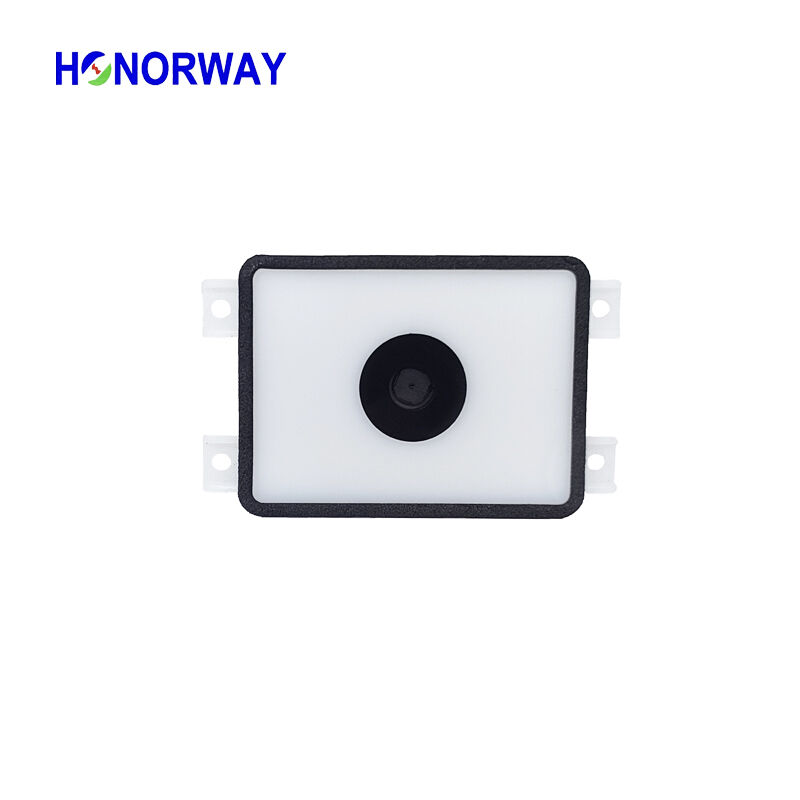

Anti Glare CMOS Imaging QR Barcode Reader Module For Self Service Kiosk

Name: Anti Glare CMOS Imaging QR Barcode Reader Module For Self Service Kiosk
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1560D
Price: 12 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1560D
MOQ:	2
Price:	12
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Drive-up Payment QR Reader Module

Scan Type:

CMOS Imaging Type

Decoding Capacity:

1D+2D QR, Support Paper And Display

Reading Distance:

30-500mm(25mil QR 4*4cm Screen)

Working Current:

200mA

Indication:

Buzzer & LED

Advantage:

Good Performance, Inexpensive

Application:

E-wallet QR Payment

Highlight:

Anti Glare Barcode Reader Module

Drive Through Payment QR Reader Module

Barcode Reader Module for Kiosk

Product Description

HW-1560D Drive-through Payment QR Reader

Compact embedded scan engine featuring anti-glare technology and extended reading distance for self-service kiosk applications.

High-Performance Scanning Capabilities

The HW-1560D combines a 0.3MP global shutter sensor with advanced optical filtering to suppress glare and ensure consistent decoding of 1D and 2D barcodes. Its extended depth of field supports mobile QR code reading from up to 60cm away, maintaining stable performance at 45cm under bright sunlight conditions.

Technical Specifications

Image Sensor	CMOS
Exposure	Global shutter
Resolution	0.3MP (752×480 pixels)
Decoding Capacity	Supports paper and screen barcodes
Supported Formats	2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN, etc. 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Interleaved 2 of 5, ISBN, ISSN, ITF6, ITF14, Codebar, Code 93, UCC/EAN-128, etc.
Precision	4mil
Light Source	LED (630nm±10nm)
View Angle	68°(H) × 51°(V)
Scan Angle	Rotation 360°, tilt ±50°, skew ±50°
Min Contrast	30%
Anti-sunshine	Supported
Typical Depth of Field	20-150mm (13mil EAN13) 25-150mm (15mil QR) 30-500mm (25mil QR 4×4cm screen) 20-90mm (7mil PDF417)
Interface	RS232 (DB9, open wire), USB (HID, COM), TTL232 (UART)
Working Voltage	DC 5V
Current	250mA (Max), 100mA (standby), 1mA (sleep)
Dimensions	54.5 × 33.3 × 14 mm (L × W × H)
Weight	11g (without cable)
Indication	Buzzer & LED

Performance may be impacted by barcode quality and environmental conditions.

Cost-Efficient Solution

Delivers exceptional cost efficiency, making it an ideal choice for high-volume self-service applications where budget and reliability are equally critical. Tailored configurations are available with flexible camera and sensor options to suit diverse integration needs.

Real-World Deployment

In sun-drenched regions such as Africa, the HW-1560D powers frictionless payment experiences at parking exits and fuel stations. Drivers can pay by displaying their mobile QR code from within the vehicle, while the scanner's anti-glare optics and long working distance ensure fast, reliable reads without requiring users to roll down windows or step outside—significantly improving throughput and user satisfaction.
