1MP Embedded High Density QR Barcode Scan Module For Self Checkout Machine

Name: 1MP Embedded High Density QR Barcode Scan Module For Self Checkout Machine
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1960H
Price: 30 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1960H
MOQ:	2
Price:	30
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

1MP Mirror Optics Barcode Reader Module

Resolution:

1280*800pixels

Typical DOF:

0-70mm(5mil Code39 10b)

Motion Tolerance:

1M/S

Interface:

RS232, USB(HID, COM),TTL232

Dimensions:

120*102*55.4mm

Advantage:

Zero-distance Scan

Application:

Decoding High-density QR, Self-checkout Machine For Supermarket

Highlight:

1MP Resolution Barcode Scan Module

High Density QR Barcode Scan Module

Product Description

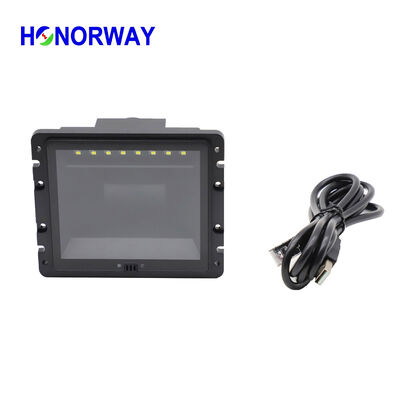

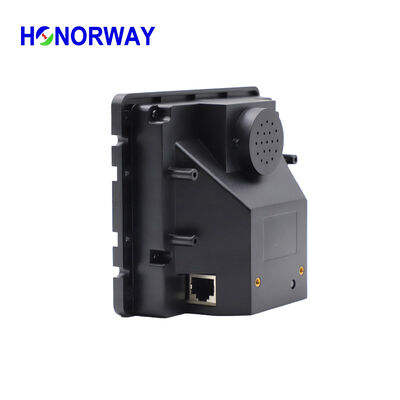

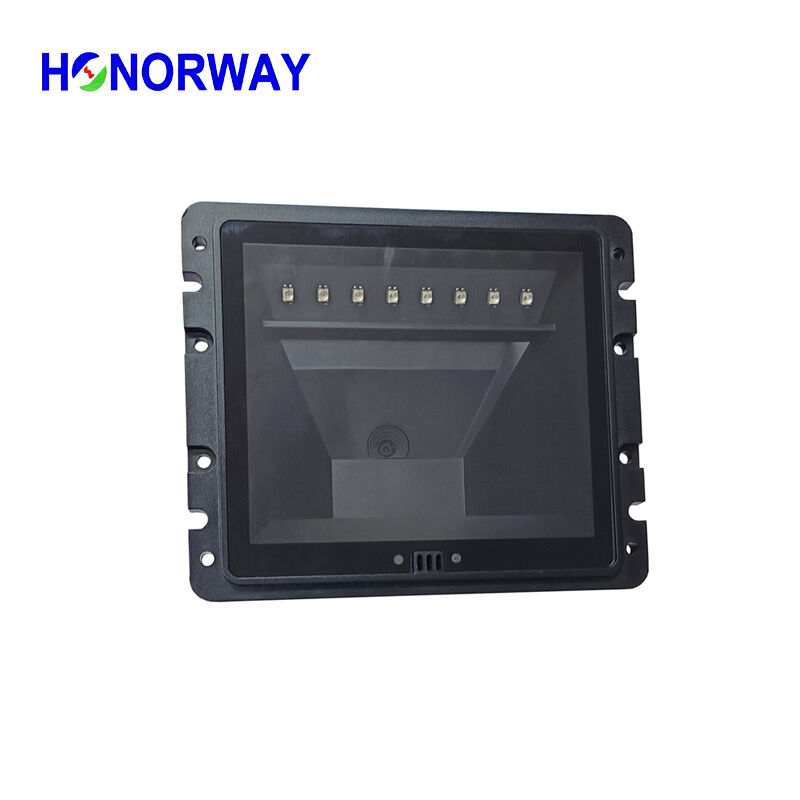

HW-1960H 1MP Embedded High Density QR Barcode Scanner Module with Mirror Optics for Self-checkout Machine

1MP Embedded Barcode Scanner with Mirror Optics for Zero-Distance Reading

The HW-1960H is a high-resolution embedded barcode scanner module featuring a 1MP sensor with 1280 x 800 pixel resolution, designed to decode high-density barcodes with exceptional clarity. Its larger scan window simplifies user alignment, while an innovative mirror-based optical path extends the travel distance internally—allowing users to scan from extremely close range, even with the barcode placed directly against the protective window.

Key Features

1280 x 800 imaging sensor for precise decoding of compact, high-density codes
Patented mirror reflection design shortens working distance, enabling near-contact scanning
Raised scan window aligns flush with device exterior for a clean, professional finish
Supports 25 global languages and UTF-8 encoding for flexible character output
Comprehensive SDK and driver support for major operating systems

Image Sensor	CMOS
Exposure	Global shutter
Resolution	1MP 1280*800 pixels
Decoding Capacity	Support paper and screen barcodes 2D: QR, MICROQR, PDF417, MICRO PDF417, DATAMATRIX, AZTEC, GS1 Composite etc. 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 93, Code 128, UCC/EAN 128, Trioptic code39, Code 32, Codebar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, Code 11, Industrial 25, Standard 25, Plessey Matrix 2 of 5 etc. all normal 1D
Precision	4mil
Light Source	LED(630nm±10nm)
View Angle	42°(H) x36°(V)
Scan Angle	Rotation360°, tilt±55°, skew±55°
Min Contrast	25%
Motion Tolerance	1M/S
Typical DOF	0-70mm(5mil code39 10b) 0-250mm(20mil QR 16b) 0-100mm(6.7mil PDF417 7b) 11-130mm(10mil DM 20b) Performance may be impacted by bar code quality and environmental conditions
Interface	RS232, USB(HID, COM), TTL232
Working Voltage	DC 5V
Current	300mA(working) 40mA(standby)
Dimensions	12010255.4mm
Weight	175g(without cable)
Indication	Buzzer & LED
Working Temperature	-20~50℃
Storage Temperature	-40~70℃
Humidity	5%-95%(Non-condensing)
Light Immunity	0~100,000Lux

Proven Applications

Self-Checkout Systems: Deployed in retail chains such as Walmart, Sam's Club, and Rainbow, where consumer-friendly scanning performance reduces checkout queues. The HW-1960H's forgiving scan zone and close-range capability improve first-time scan success rates.
Identity Verification Kiosks: Successfully used in Vietnamese ID document readers, where its high-density decoding capability reads complex QR codes that other modules fail to process, with Vietnamese keyboard output for special characters.
Metro Turnstiles: Wide-angle optics and motion tolerance enable fast, intuitive scanning without requiring users to adjust phone angle or distance—ideal for high-traffic transit environments.
