12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface

Name: 12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1930
Price: 10 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1930
MOQ:	2
Price:	10
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Features:

NFC,OCR,MRZ Is Optional

Product Name:

Sunlight Readable Barcode Reader Module

Working Tem:

-30~70℃

Dimensions:

65*61*28mm

Weight:

30g(without Cable)

Interface:

USB(HID, COM),TTL232; RS232,wiegand,RS485(optional)

Reading Distance:

10-190mm(20mil QR 10bytes)

Working Voltage:

3.3V,5V,12V,16V DC

Application:

Subway Turnstile, Access Control System,Vending Machine Etc.

Highlight:

Barcode Scanner Module Wide Angle

Anti Glare Barcode Scanner Module

RS485 Interface Embedded Barcode Scanner

Product Description

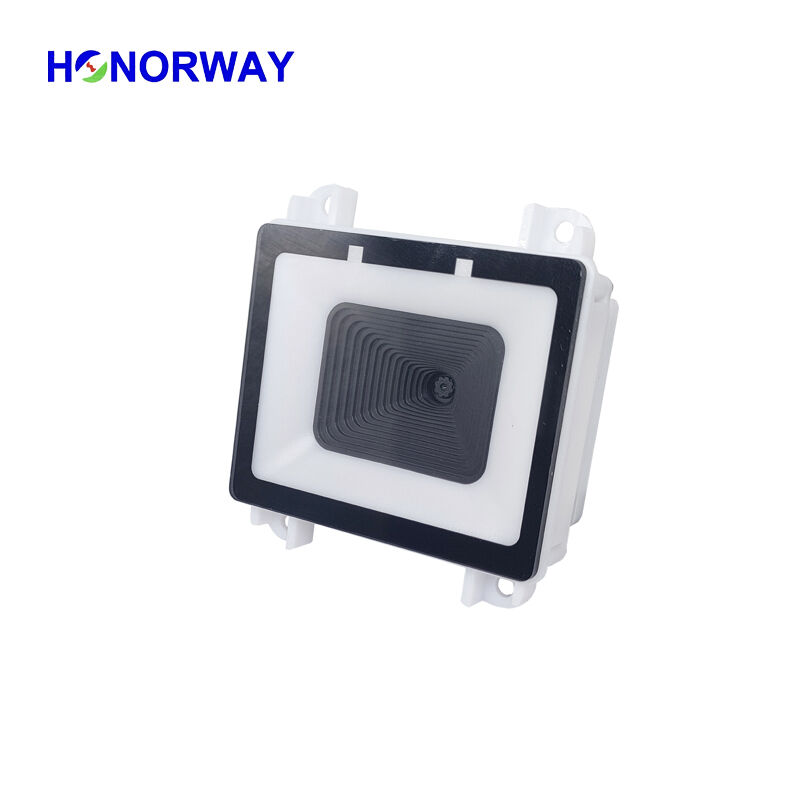

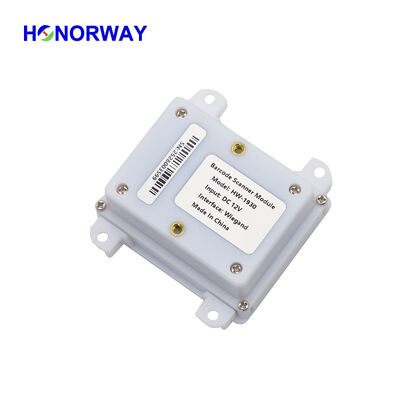

HW-1930 OEM 12V Wide Angle Anti-glare Barcode Scanner Module

Professional barcode scanner module with Wiegand RS485 interface designed for access control systems and transit gates.

Product Overview

Purpose-built for continuous operation in transit gates and secure entry points, the HW-1930 combines high-speed scanning with exceptional environmental adaptability. Its 0.3MP global shutter sensor captures QR codes from reflective mobile screens without glare interference, even under direct sunlight. A protective acrylic cover shields the optics from dust while maintaining scan clarity.

With support for USB, TTL, RS232, RS485, and Wiegand interfaces, and a wide 3.3V-16V power input, the module simplifies hardware integration across diverse platforms. Optional upgrades include a built-in 13.56MHz RFID reader for hybrid QR + card reading, as well as an OCR variant for passport and ID document MRZ recognition.

Key Advantages

Glare-resistant imaging ensures reliable mobile barcode reading in outdoor or brightly lit environments
Configurable interface and power options reduce design complexity
Available with RFID or OCR functionality for multi-credential applications
Proven 24/7 reliability—currently in service on Ho Chi Minh City's first metro line since 2023
Optimized for turnstiles, gated entry, and access control systems where uptime is critical

Technical Specifications

Image Sensor	CMOS
Exposure	Global shutter
Resolution	640*480 pixels at 120fps
Decoding Capacity	Supports paper and screen barcodes
2D Code Support	QR Code, Data Matrix, PDF417, Hanxin code, Dot code, etc.
1D Code Support	UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI Plessey, GS1 DataBar, and all normal 1D codes
Precision	4mil
Light Source	LED (630nm±10nm)
View Angle	61°(H) * 48°(V)
Scan Angle	Rotation 360°, tilt ±60°, skew ±60°
Minimum Contrast	25%
IR Sensing	Supported
Typical Depth of Field	10-130mm (5mil Code39), 30-300mm (20mil Code39), 10-140mm (5mil Code128), 10-260mm (100% UPCA), 10-190mm (20mil QR), 10-90mm (5mil PDF417), 10-80mm (10mil Data Matrix) Performance may be impacted by barcode quality and environmental conditions
Interface	USB (HID, COM), TTL232, RS232, Wiegand, RS485 (optional)
Working Voltage	3~3.6V or 3.6~16V, standard 5VDC
Current	<200mA (3.3V input), <150mA (5V input), <10mA (standby)
Dimensions	656128mm
Weight	30g (without cable)
Indication	Buzzer & LED

Proven Deployment

The HW-1930 was selected for Ho Chi Minh City Metro Line 1 as the primary QR code reader module, operating continuously for over three years without failure. In access control, it is commonly deployed in QR + RFID configurations with 12V DC and Wiegand output, meeting the strict durability and security standards of modern entry systems.
