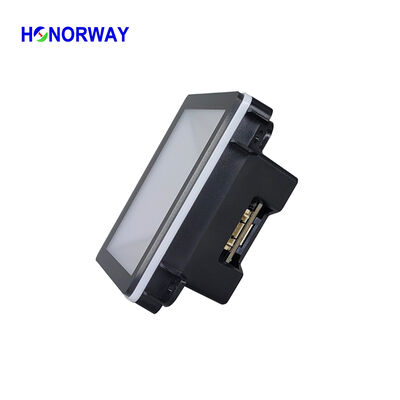

1D 2D QR Screen Auto Detective Barcode Scanner Module With RS232 UART For Kiosk

Name: 1D 2D QR Screen Auto Detective Barcode Scanner Module With RS232 UART For Kiosk
Brand: Shenzhen Honor Way Electronic. Co., Ltd.
SKU: HW-1870S
Price: 12 USD
Availability: InStock

Brand Name:	HONORWAY
Model Number:	HW-1870S
MOQ:	2
Price:	12
Payment Terms:	T/T
Supply Ability:	10Kpcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS FCC ISO9001

Product Name:

Auto Scanning Barcode Reader Module

Decoding Capacity:

1D Barcode+2D QR, Printed And Display

Reading Angle:

Rotation360°,tilt±57°,skew±57°

Interface:

USB(HID, COM),TTL, RS232/RS485(optional)

Dimensions:

65*61*28mm

Indication:

Buzzer & LED

Physical Interface:

6pin Port+12pin FFC Port

Application:

Vending Machine,turnstile,ticket Machine Etc.

Highlight:

Auto Detective Barcode Scanner Module

UART Interface Bar Code Scanner Module

Barcode Scanner Module With RS232 UART

Product Description

HW-1870S Highly Cost-effective 1D 2D QR Screen Auto Detective Barcode Scanner Module

The HW-1870S is an ideal choice for developers and system integrators seeking a versatile barcode scanning solution for both printed and screen-displayed 1D and 2D barcodes. This cost-effective embedded barcode reader delivers reliable scanning performance without compromising on functionality.

Flexible Integration Options

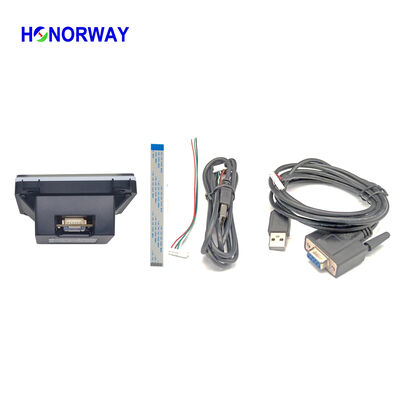

Equipped with multiple interface options including USB, TTL, and RS232, this module offers flexible integration for a wide range of industrial and commercial applications. The module features a 6-pin 1.25mm pitch connector and a 12-pin FFC connector, providing expanded I/O capabilities for custom implementations. Custom cables are available upon request for projects requiring RS232 interface with DB9 connectivity.

Key Features

Cost-effective performance: Strikes the right balance between affordability and reliable scanning
Auto-trigger mode: Integrated imaging sensor enables hands-free operation
Durable protective cover: Comes with a transparent acrylic window to safeguard the camera
Flexible connectivity: Supports multiple interfaces with customizable cabling options

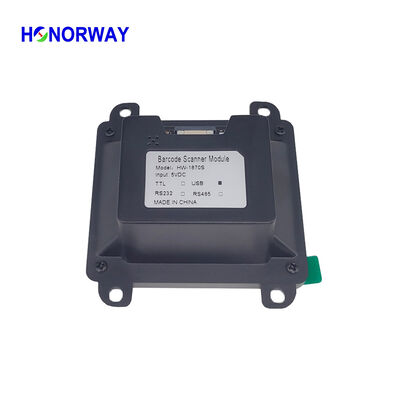

Compact design: Features evenly distributed mounting holes for easy installation

Technical Specifications

Image Sensor	CMOS
Exposure	Roller shutter
Resolution	0.3MP 640*480 pixels
Decoding Capacity	Supports paper and screen barcodes 2D: QR, PDF417, MICROPDF417, DATAMATRIX, etc. 1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_EXP, etc.
Precision	5mil
Light Source	LED(630nm±10nm)
View Angle	76.7°(H) x 53.4°(V)
Scan Angle	Rotation 360°, tilt ±57°, skew ±57°
Min Contrast	25%
Typical DOF	15-100mm (5mil code39) 15-150mm (10mil code39) 15-110mm (5mil UPCA) 15-120mm (10mil UPCA) 25-150mm (15mil QR) 15-150mm (8mil QR) 12-110mm (5mil PDF417) 11-130mm (8mil Data Matrix)
Interface	USB (HID, COM), TTL, RS232/RS485 (optional)
Working Voltage	DC 5V±5%
Current	150mA (Max), 90mA (working), 1mA (standby)
Dimensions	656128mm
Weight	35g (without cable)
Indication	Buzzer & LED
Working Temperature	-30~60℃
Storage Temperature	-40~70℃
Humidity	5%-95% (Non-condensing)
Light Immunity	0~100,000 Lux
Drop Test	1.8M (6ft)

Performance may be impacted by bar code quality and environmental conditions
