| Brand Name: | HONORWAY |
| Model Number: | HW-6290 |
| MOQ: | 1 |
| Price: | $22-$25/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 30kpcs per month |

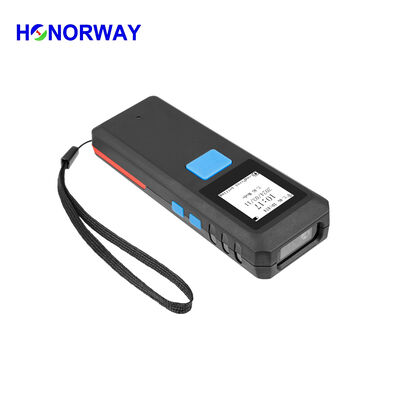

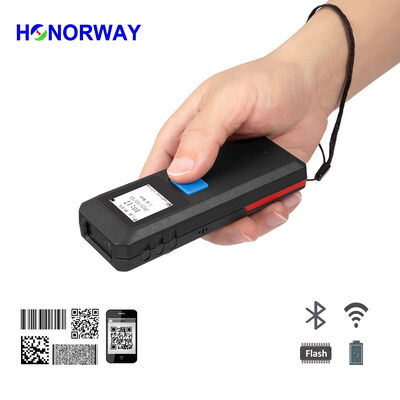

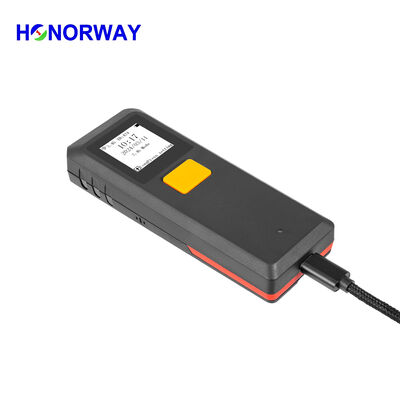

WIFI Portable barcode scanner Bluetooth Wireless Code128 Maxicode Barcode Reader for Inventory Logistic
Product Description
Engineered for mobility and performance, the HW-6290 is a premium-grade wireless scanner that combines advanced imaging technology with robust connectivity. It's designed to streamline data capture in dynamic environments like warehouses, retail floors, and field service operations.
Key Advantages:
1. Superior Decoding Power: Equipped with a high-resolution 640x480 pixel CMOS imager and global shutter sensor, it delivers first-rate read rates on virtually all 1D and 2D barcodes, including those on mobile device screens.
2. Unmatched Connectivity Flexibility: Seamlessly switch between Bluetooth® (HID/SPP/BLE), long-range 2.4GHz wireless (up to 100m), or USB-C cable. A single 2.4GHz USB receiver can pair with multiple scanners for centralized data collection.
3. On-Device Intelligence & Control: Its integrated display provides real-time status feedback (battery, connection, data) and enables direct menu-driven configuration, eliminating reliance on PC software or printed manuals for setup.
4. Extended Operation & Data Security: A 1500mAh battery supports over 10 hours of continuous use. With 16MB of onboard memory, confidently collect data in offline mode and upload later, ensuring no data loss.
5. Advanced Data Formatting: Extensive built-in parsing and editing functions allow you to add prefixes/suffixes, insert/truncate characters, and output Code IDs. Supports 25+ keyboard layouts and major character encodings for global deployment.
Technical Specification
|
Reading performance |
Image Sensor | CMOS |
| Resolution | 0.3MP 640*480pixels | |
| Decoding capacity | Support paper and screen barcodes | |
| 2D: QR, Micro QR, Data Matrix, PDF417, MicroPDF417,Aztec ,Maxi Code, Hanxin etc. | ||
| 1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2of 5,industrial 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,GS1,etc. all normal 1D | ||
| Precision | 4mil | |
| Light Source | 617nm Visible red LED,white LED | |
| Scan Angle | Rotation360°,tilt±60°,skew±60° | |
| Min Contrast | 25% | |
| Scanning Speed | 400 times/s | |
| Typical DOF |
60-100mm(4mil code39) 40-200mm(13mil EAN13) 40-350mm(20mil QR) 40-290mm(10mil PDF417) Performance may be impacted by bar code quality and environmental conditions |
|
| Mechanical and electrical | Interface | USB/USB COM Bluetooth 2.4GHz RF wireless |
| Bluetooth Mode | HID SPP BLE | |
| Working Voltage | DC 5V | |
| Current | 200mA(working) 10mA(standby) | |
| Battery | 1200mAH lithium battery, charge time 4-5H | |
| Memory Size | 16MB(10K characters/barcode) | |
| Dimensions | 90*30*20mm | |
| Net weight | 120g | |
| Cable Length | 1.5M | |
| Accepter | USB or USB virtual serial | |
| Environment Request | Working Tem | -20~50℃ |
| Storage Tem | -30~60℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light Immunity | 0~100,000Lux | |
| Time system | supported | |
| Drop Test | 1.5M |
Application
Thanks to its compact design, wireless connectivity, long battery life and storage capacity, the HW-6290 is ideal for portable use cases such as warehousing, logistics, healthcare, food traceability and industrial MES systems. For outdoor farm applications, we offer a customized GPS positioning function that adds longitude and latitude as prefixes to barcode data, enabling location-based data management.
FAQ
1. Can you make our package?
A: YES. We have make the package according to your needs. such as put your logo on the package
2. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
3. Can I use my logo?
YES. just send us the drawing of our logo. then we will put it on the products and package.
