| Brand Name: | HONORWAY |
| Model Number: | HW-1580z |
| MOQ: | 2 |
| Price: | $11-14/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10Kpcs/month |

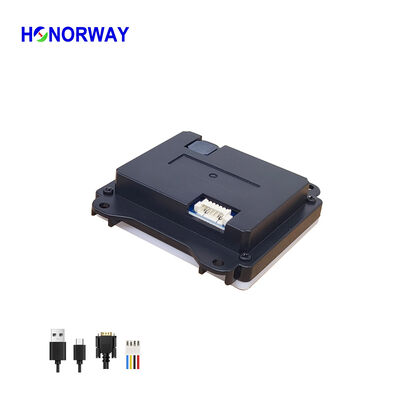

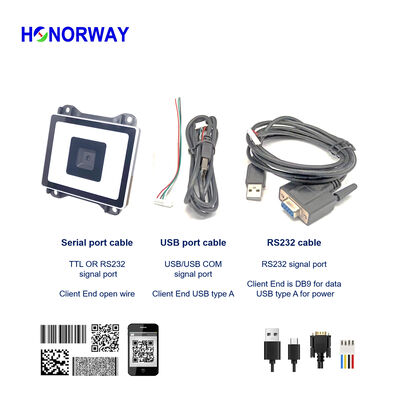

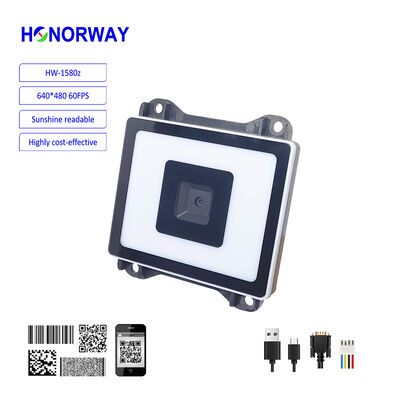

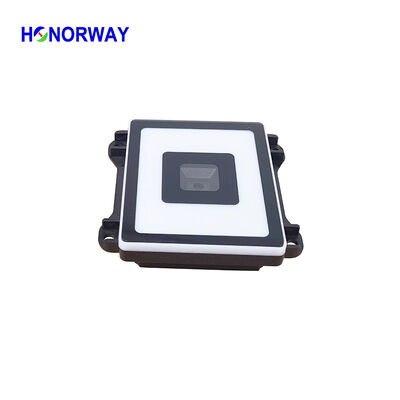

The HW-1580z is a compact 2D embedded scan engine built for self-service kiosks, turnstiles, vending machines, and bus ticketing terminals. It uses a CMOS rolling shutter sensor and wide-angle optics to capture 1D/2D barcodes on paper and mobile screens. With a 5mil minimum resolution and USB (HID/COM), TTL, RS232 (optional) interfaces, it integrates easily via a 1.25mm 6-pin connector. Auto-sensing, Continuous, and Host modes are supported.
The HW-1580z provides a certain degree of motion tolerance. It is not a high-speed motion scan engine, but it helps when users move slightly or present a code quickly. This reduces the need to hold completely still and makes everyday scanning more forgiving in bus ticketing, access control, and similar applications.
Outdoor terminals often suffer from screen glare. The HW-1580z combines a CMOS sensor with optimized optical filtering and decoding algorithms. It can read barcodes and QR codes from mobile screens under bright sunlight, overcoming screen reflections and supporting reliable outdoor operation.
Measuring 60.99 × 64.84 × 17 mm, the HW-1580z offers full 2D scanning in a compact package. It supports 5mil barcodes, multiple interfaces, and flexible scan modes. For OEMs seeking a cost-effective embedded barcode scanner module, it delivers strong performance at a highly competitive price.
