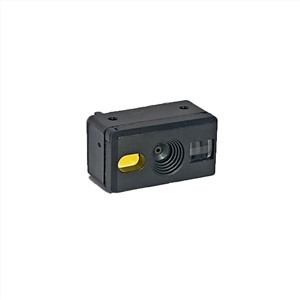

OEM Barcode Reader Engine

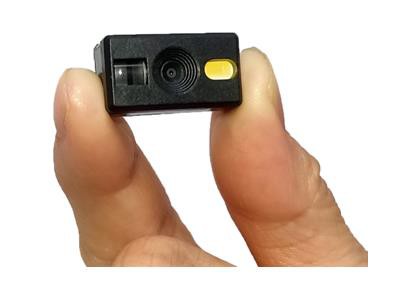

HW-1251 OEM Barcode Reader Engine is a CMOS barcode reader module that can read 1D 2D barcode on paper and screen.It has a host mode for programming, that means the reader can be controlled by sending serial port commands from host(MCU). It supports Continuous Mode that is always in working state.This can increase the efficiency of scanning, which in turn improves work efficiency. There are 2 mounting holes on the bottom of the barcode scanner module, which can be fixed on the PCB board or the mounting posts using self-tapping screws. The installation is simple and fast.

OEM Barcode Reader Engine



The features and advantage

1.Readable both 1D and 2D barcodes,2 in 1,no need to buy 1D device.

2.with TTL232,USB signal interface on 12pin FPC,easy to connect.

3.Read barcode with 360 degree rotation,no need to adjust the angle,fast scanning.

4.The output data can be edited, which is helpful for customers to mark the barcode data.

5.If the customer tells us specific requirements, we can help him set product features before shipment, such as serial port output, automatic sensing mode, etc.



Package and delivery

1.This product will be packed with foam partition and carton, avoid to damage.

2.Normally we have stock, samples can be shipped out within 2days.

3.DHL will be a good choice for the small size product.



Product parameters

Image Sensor	CMOS
Resolution	0.3M pixels,640*480
Decoding Abilities	Support paper and screen barcodes
	2D: QR,PDF417,Data Matrix, etc.
	1D:  EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodeBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11,RSS-14 etc. all normal 1D
Density	≥5mil(1D),≥10mil(2D)
Scan Angle	Rotation360°,tilt±60°,skew±60°
Min Contrast	30%
Trigger Mode	Manual, Continuous, Motion detective, Host etc.
Typical DOF	Code 128(15mil) 45-250mm  EAN13(13mil)40-200mm QR code(15mil)40-180mm      Performance may be impacted by bar code quality and environmental conditions



You may like

Embedded QR Code Reader	2D kiosk barcode reader module

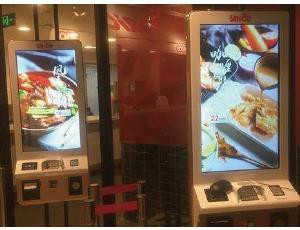

Application

HHT,POS,PDA etc.	Cabinet for express	Self sevice machine
Handheld barcode Scanner	Self-printing for medical	Traceability for factory



FAQ

1.Can I pay by Paypal?

YES. For sample order,it is very welcome because it is fast and less bank charge.



2.What is your price terms?

Usually our quotation is based on "EXW/FOB Shenzhen". Other requirements should be applied.



3.Can you make customization for software?

YES, Logo silk print, device color customization and other ODM requirements are supported.



4.Do you offer other relevant products?

We are a barcode scanner manufacturer, at the same time, we have RFID+barcode reader products, speaker product, thermal printer.



5.How do I know that you have sent the products out?

Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
